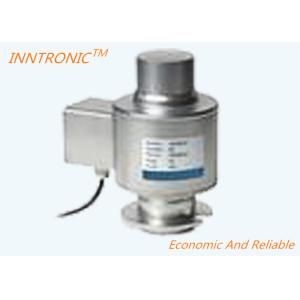

ISC 30t to 50t Canister Compression Column Load Cell for truck scale

Hight Degree Sealing Electronic Scale Load Cell Dust Prevention OIML C5 Approved for truck scale

• Full ScaleOutput:2.00 (±0.02) mV/V
• OutputResistance:700 (±35) ohms
• InputResistance:700 (±35) ohms
• Material/Finish:Stainlesssteel
• Temperature:
• Compensatedrange 14°F to104°F (-10°C to 40°C)
• Operatingrange -40° F to150° F (-40°C to 65°C)
• ManufacturerModel Number:ASC-B10-XX-60P5R
• SafeOverload:150% fullscale
• RatedExcitation:5 VDC to20 VDC
• CombinedError:0.02%full scale
• InsulationResistance:5,000megohms
• SealType:Hermeticallysealed, IP68
• CableLength:OIML: 15m
• NTEPCertified: 60 ft
• CableDiameter: 0.295 in polyurethane jacket
• CableColor Code:
• Green+Excitation Black–Excitation
• White+Signal Red–Signal
• Transparent.............Shield
• Warranty:One-yearlimited warranty

A load cell is a highly accurate and reliable device used to measure weight or force. It is commonly used in industrial and commercial applications where precise weight measurements are required. Load cells are designed to convert the force applied to them into an electrical signal that can be easily measured and recorded.

At its core, a load cell consists of a metal body with strain gauges attached to it. When a force is applied to the load cell, the metal body deforms slightly, causing the strain gauges to change their resistance. This change in resistance is then converted into an electrical signal that can be read by a computer or other device.

Load cells come in a variety of shapes and sizes, and can be used in a wide range of applications. They are commonly used in weighing scales, industrial machinery, and even in medical equipment. Load cells are known for their high accuracy and reliability, making them an essential tool for many industries.

If you are looking for a high-quality load cell, it is important to choose a reputable supplier. Look for a supplier that offers a wide range of load cells, and that has a proven track record of providing reliable and accurate products. With the right load cell, you can ensure that your weight measurements are always accurate and reliable, helping you to improve your processes and increase efficiency.

INNOVATION ELECTRONIC CO..,LTD Focus on Weighing and Static solution in Packing industry!

In the past tens of years, we established very good relationship with wide range of suppliers and customers in weighing and static products especially in packing industry and also investigated in our own factories of weighing and static, step by step, we get our own special advantages in this market: more accuracy and more economic weighing and static solution for you!

Our weighing solution mainly include:

1. all kinds of load cells( tension and compression load cell, s type load cell, single point load cell, shear beam load cell, those load cells are widely used in kinds of packing industry like food weighing and packing, cement weighing and packing, chemical dosing and packing, pharmaceutical dosing and packing, electronic balance, silo scale, truck scale, etc. )

2. High accuracy bench scale, floor scale, table scale, counting scale. They are widely used in kinds of places that need high accuracy weighing, like small bolts counting and packing, expensive powder and particles weighing and packing, sub-package system,etc.

3. Weighing equipment like dosing machine, checkweigher, roller conveyor scale, etc. This equipment are widely used in weighing and packing production line. The main use is to feed material of set quantity, and double check whether the weight is in the allowed range or not and eliminate the packages that not in allowed range.

The Static solution mainly include:

1. Static charging machine of 20KV, 30KV, 60KV, 100KV. They are wide used in packing material production line, like plastic film machine, bag making machine, IML labeling machine,side weld bag handles, shrink wrapping, electrostatic bonding, etc.

2. Static eliminators of 7.5KV, 6kv, AND anti-static bar,Ionizing air gun, Ionizing Air nozzle, Static foam, etc. These eliminators are widely used in static elimination before packing of finished products. It is to make the packing better, or to remove the dust on the surface of products.

If you have any weighing or static problem especially in packing industry, contact us, we are confident to provide you a suitable and economic Solution!
