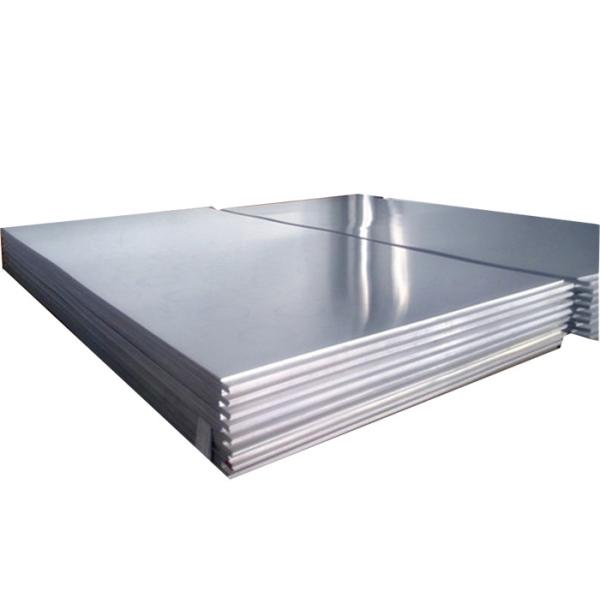

Aviation Material Aircraft Aluminum Sheet Excellent Plasticity T
Temper
Nowadays, the high intensity 2xxx series (2024, 2017, 2A12 and
etc.) and 7xxx series (7075.7475, 7050, 7A04 and etc.) aluminum
alloy are the most widely used material that various countries used
on the aircraft structure parts, in addition, a part of alloy of
5xxx series, 6xxx series and bits of other alloy series also have
some application, for example: 5A06,5052,5086, 6061.6082 and so on.
Product specifications:
| Aluminum grade | 2xxx, 5xxx, 6xxx, 7xxx series available |
| Temper | T6, T73, T651, T7351 and etc. |
| Length | 1000-3660mm or customized |
| Width | 1000-1536mm or customized |
| Thickness | 3-300mm or customized |
| Surface | Degreased, anodized, mill finish,laminating,etc |
| Application | Aerospace, marine, automotive, railway transportation, oil and
chemical industries etc. |
Specifications of 2xxx series alloy applied on the aerospace:
| Grade | Alloy | Temper | Parts of application |
2xxx | 2A11 | T4,T6,T351 |
Aerospace vehicle structural parts, skin of aerospace vehicle ,
frames, ventral sheet, the gear rack warehouse reinforcement parts
of undercarriage , subplate of cabin door, the long boom, the
girder of wings, the floor bearer and supporter, sliding rail of
pedestal, airtight floor.
|
| 2A12 | O,T3,T4,T351,H112 |
| 2A14 | T4,T6,T351 |
| 2014 | O,T3,T4,T351,H112 |
| 2017 | O,T3,T4,T351,H112 |
| 2024 | O,T3,T4,T6,T351,T861,T3511,T8611 |
Typical advantages of aircraft aluminum sheet:
1. Excellent plasticity
2. Suitable for frame parts of aircraft.
3. High anti-fatigue performance and
4. Compact idensity
5. High property of anti-corrosion, anti-acid and oxidation.
Parameters of aluminum and aluminum alloy in different (for
reference):
| Aluminum& Aluminum Alloy in Different Countries |
| CHINA | USA | UK | JAPAN | FRANCE | GERMANY | The former SU |
| GB | ASTM | BS | JIS | NF | DIN | ГОСТ |
| Industrial pure aluminum | 1A99 | 1199 | | | | A199.99R | A99 |
| 1A97 | | | | | A199.98R | A97 |
| 1A95 | | | | | | A95 |
| 1A80 | | 1080(1A) | 1080 | 1080A | A199.90 | A8 |
| 1A50 | 1050 | 1050(1B) | 1050 | 1050A | A199.50 | A5 |
| Rust-proof aluminum | 5A02 | 5052 | NS4 | 5052 | 5052 | A1Mg2.5 | Amg |
| 5A03 | | NS5 | | | | AMg3 |
| 5A05 | 5056 | NB6 | 5056 | | A1Mg5 | AMg5V |
| 5A30 | 5456 | NG61 | 5556 | 5957 | | |
| Hard aluminum | 2A01 | 2036 | | 2117 | 2117 | AlCu2.5Mg0.5 | D18 |
| 2A11 | | HF15 | 2017 | 2017S | AlCuMg1 | D1 |
| 2A12 | 2124 | | 2024 | 2024 | AlCuMg2 | D16AVTV |
| 2B16 | 2319 | | | | | |
| Forging aluminum | 2A80 | | | 2N01 | | | AK4 |
| 2A90 | 2218 | | 2018 | | | AK2 |
| 2A14 | 2014 | | 2014 | 2014 | AlCuSiMn | AK8 |
| Super hard aluminum | 7A09 | 7175 | | 7075 | 7075 | AlZnMgCu1.5 | V95P |
| ZAlSi7Mn | 356.2 | LM25 | AC4C | | G-AlSi7Mg | |
| Cast aluminum | ZAlSi12 | 413.2 | LM6 | AC3A | A-S12-Y4 | G-Al12 | AL2 |
Aluminum alloy | ZAlSi5Cu1Mg | 355.2 | | | | | AL5 |
| ZAlSi2Cu2Mg1 | 413 | | AC8A | | G-Al12(Cu) | |
| ZAlCu5Mn | | | | | | AL19 |
| ZAlCu5MnCdVA | 201 | | | | | |
| ZAlMg10 | 520.2 | LM10 | | AG11 | G-AlMg10 | AL8 |
| ZAlMg5Si | | | | | G-AlMg5Si | AL13 |
