    Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

    Ask Lasest Price
    Brand Name : HUIHAO
    Model Number : insulation anchor pins
    Certification : ISO
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 300000 pcs per month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

    Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

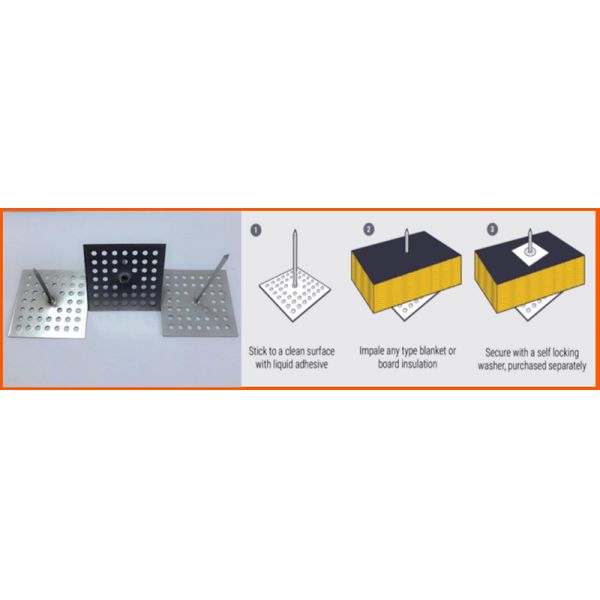

    Drawing Of Perforated Base Insulation Anchor Pins:



    Specification Of Perforated Base Insulation Anchor Pins:


    material

    pin dia

    base size

    length

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    1/2"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    1"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    1-5/8"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    2"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    3-1/2"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    4 1/2"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    5 1/2"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    6"

    Galvanized steel ,ss , aluminum

    12ga ( 0.106 " )

    2''X2''

    8"


    Application Of Perforated Base Insulation Anchor Pins:



    Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc. Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining



    Related Products Of Perforated Base Insulation Anchor Pins- Self Locking Washer:


    Round self-locking washer, or speed clip, is made primarily in mild steel, with standard stainless and aluminum sizes available. In several variations of round sizes, this insulation washer mounts on many types of insulation fasteners for capturing and holding insulation material in place. The gauge of the pin, or diameter, should match the fastener to be affixed, or "locked", onto. Popular diameters are 14 gauge, 12 gauge and 10 gauge---while overall, a wide variety of whole sizes are available in both standard and metric self-locking hole sizes which can range from 1/8" to 1/2".


    Diameter

    1

    1-3/16

    1-1/2

    1-1/2

    2"

    Nominal Thickness

    .015

    .015

    .015

    .015

    .015

    Stnd Material

    Galv

    Galv

    Galv

    Galv

    Galv

    Pack

    1000

    1000

    1000

    1000

    2000

    Approx. Wgt/1000

    4.2

    4.8

    8

    8

    14

    Other Materials

    S.S.

    S.S.

    S.S.
