Wholesale price under vehicle surveillance camera system from
UNIQSCAN China

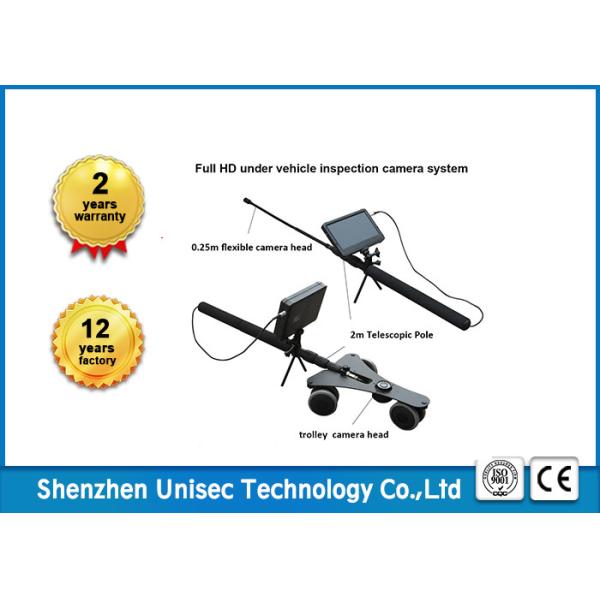

HD digital camera with 7inch DVR system under vehicle inspection
camera for security check
1,Specification
Mini camera for Wheels tray
Optical Element 1/2.5 CMOS Sensor SONY
Optical Total Pixels 2.5M :2000(H)×1121(V)
CMOS Sensor Size 5.6mm(H)×3.14mm(V)
Sensitivity 0.08Lux/F1.2
Lens & View angle 3.6mm F1.2 (H )90 °
HD Video Output Interface FPD-LinkⅢ
Waterproof rate IP68
camera Pole 2m Telescopic Survey Pole
Dimension & Weight 18 x 28mm, 10g
Cable(4 Cores High-Speed Line) Diameter:3.5mm Length:2.7meters
Flexible camera
Optical Element 1/3 CMOS Sensor
Optical Total Pixels 3.5 Mega :2304(H)×1536(V)
CMOS Sensor Size 5.07mm(H)×3.38mm(V)
Sensitivity 0.2Lux/F1.2
Lens & View angle 0.5mm F1.2 90 °
HD Video Output Interface FPD-LinkⅢ
Waterproof rate IP68
Dimension & Weight 18 x 28mm, 10g
Cable(5 Cores High-Speed Line) Diameter:3.5mm Length:3 meters
camera Pole 2m Telescopic Survey Pole
7’ SCREEN DVR
HD Video Output HDMI:1920* 1080;1280*720
Video Storage Pixels(16:9) HDMI:1920* 1080;1280*720
Video Compression Format H.264
Video Storage AVI
HD Digital Video Input Interface FPD-LinkⅢ
Audio Frequency Range 20HZ-20KHz AAC
Audio Compression Format AAC
Photo Format JPG 3.15 Mega :3200(H)×1800(V)
Storage External SD card TF card 1GB-64GB(Optional)
32GB recording time 10-32 hours
Operating System Windows & Mac OS
Port USB 2.0
Language Multiple
Voltage DC :7-24V
USB DC:5V
Current(Monitor mode) 400MA
2,Detailed parts
