| Brand Name : | Chuangyin |
| Model Number : | LMZW-17.5(24) |
| Certification : | Kema,CE,SGS,TUV |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 36,000,00pcs per year |
| Delivery Time : | Within 7 days |

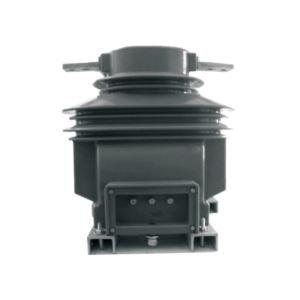

17.5(24)kV Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
1.Product Introduction:
Epoxy resincasting insulation and fully enclosed support
construction, encloses the primary & secondary windings and annular
core in the epoxy resin casting body. The product has large
periphery insulation creep distance, withstanding dirtiness and
dampness.
Be suitable for measuring electric capacity, current and protective
relaying in the power system of 17.5kV (Up to 24kV).
1. Rated insulation level:17.5/38/95 kV
24/50/125 kV
2, Rated frequency:50/60Hz
3, Installation site:Outdoor
4, Technical standard:IEC 60044-1
(IEC 61869-1&2)
Specification:
Rated transformation ratio(A) | Accuracy classes combination | Rated output (VA) | ||
| Measuring | Protective | |||
| 0.2(S) | 0.5 | 10P | ||
| 400/5 | 0.2(S)/ 0.2(S) 0.2(S)/0.5 0.5/0.5 0.2(S)/10P10 0.5/10P10 | 15 | 15 | 15 |
| 500/5 | 15 | 15 | 15 | |
| 15 | 15 | 15 | ||
| 600/5 | 20 | 20 | 20 | |
| 800/5 | 20 | 20 | 20 | |
| 1000/5 | 20 | 20 | 20 | |
| 2000/5 | 30 | 30 | 30 | |
| 3000/5 | 30 | 30 | 30 | |
| 40 | 40 | 40 | ||
| 4000/5 | ||||
| 5000/5 | 40 | 40 | 40 | |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing



|
