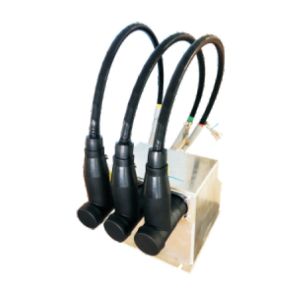

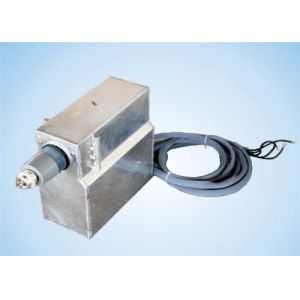

12kV Medium Voltage Transformer IEEE Pluge Single-Phase Metal Shell Type Electromagnetic Easy Installation transformer
1. Product Introduction:
Used indoor single phase or three phase AC circuit for measuring
electric capacity, voltage and protective relaying with the
frequency of 50Hz or 60Hz and rated voltage 11 kV.
The product adopts epoxy resin casting full-closed structure with
low magnetism density and large creepage distance of external
insulation The product has high reliability and maintenance free.
1. Installation site: indoor
2. Rated frequency 50160Hz
3. Load power factor. cos o =0.8 ( lagging)
4. Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
| Type | Rated primary voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output (VA) | Thermal limiting current (VA) | Rated insulation level(kV) |
| JDZXJ1-12RC | 11/√3 | 0.11/√3 | 0.2 | 15 | 2000 | 12/28/75 |
| 0.5 | 50 | |||||
| 1 | 80 | |||||
| 0.11/√3/0.1/√3 | 0.2/6P(3P) | 15/100 | 300 | |||
| 0.5/6P(3P) | 50/100 | |||||
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing

|
