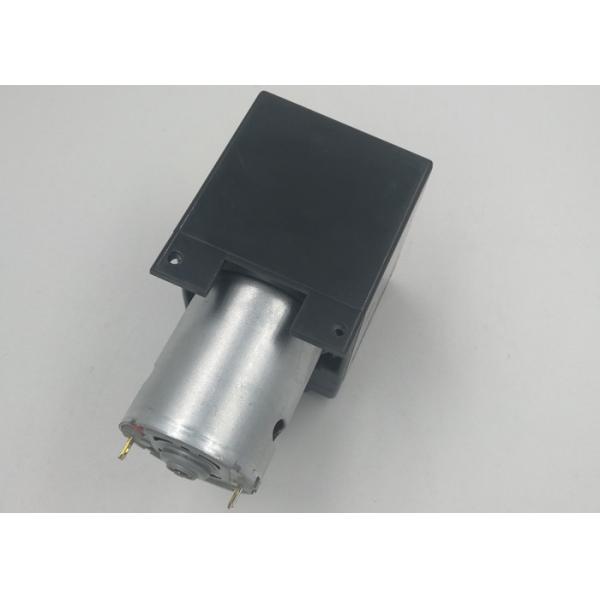

High Flow 12v Diaphragm Pump , Mini Diaphragm Vacuum Pump 6W Rohs Approval

pressure diaphragm pump or dc brush electrical diaphragm pump

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 5 l/min and 20L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

pump's features

1.High temperature performance, good consistency

2.Oil resistance and easy installation

3.DC brush motor

4.Long life span, low heat.

5.Heavy duty work for 24 hours and Continuous operation

6.The key parts are imported

7.Can work for long hours

electrical diaphragm pump's model code

According to above picture, you know how our model codes are produced.
You can know our pump more clearly and choose the pump more easily.

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

electrical diaphragm pump's production process

The factory long-term supply micro pumps to the large manufacturers. The micro pump is widely used in home appliances, electronics, cars, vacuum preservation, health care, robot supporting, a variety of environmental monitoring instrumentation and other fields. The working life of our products goes through a variety of environmental testing. The customer's requirements with our own unique technology and design can meet a variety of special industries’ needs( such as high temperature, long life , anti- electromagnetic interference , low noise , oil resistance and other special requirements ) . The company's products are exported to Europe, America , Asia, Taiwan and other places .

electrical diaphragm pump's application

1. breast pump

2. Beauty equipment

3. Vacuum packaging machine

4. Double-headed electric breast pump

5. Portable ozone sterilizer

6. Vacuum sealing machine

7. Beauty massage

electrical diaphragm pump's dimension

Unlabeled tolerance is ± 0.1mm.

Pump Size:50*70*100mm

Pump Weight:310g;

Outlet:OD 6mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump’s body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

electrical diaphragm pump's packing and shipping

We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.

The fastest, but most expensive.
You can choose according to your needs.

We only produce pump.
We strive for almost 20 years just to produce a better pump.
So we are professional in producing pump.
Please remember our name: Shenzhen Yanhua Faith Pump

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
