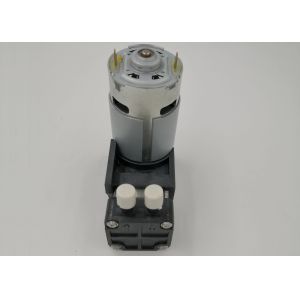

Customized Pressure Micro Piston Pump , Small Electric Diaphragm Pump DC Motor

Professional customized pressure micro brush piston pump for sale

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Pump Size:43.6*87*112mm

Pump Weight:600g;

Outlet:OD 8.5mm, silicone hose suggestion:ID 7.5mm

Materials:pump body: PPS, membrane:Teflon , diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by Teflon and pump's body is made by PPS which make pump well endurance and strong chemical resistance.

Piston pump's dimension

Unlabeled tolerance is ± 0.1mm.

Piston pump has the following advantages:

compact structure, maintenance free

oil free,low power consumption, corrosion resistance

high pressure,high flow, low noise

long life and other characteristics

Piston pump's details show

Working theory:The rotary motion of the motor is converted into the swing of the connecting rod, so as to push the piston to move up and down in the cylinder. During the downward movement of the piston, the pump chamber suck into the medium through the inlet valve. Then during upward movement of the piston, the pump chamber push out the medium through the outlet valve to complete a work cycle.

Pump's application

The pump can be used in wide range.
1. Electronic products,agriculture,finishing,light industry products
2. Analytic-al instruments
3. Chemical and production engineering
4. Various ancillary equipment

Pump's packing and shipping

We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.

The fastest, but most expensive.
You can choose according to your needs.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.

Why choose us?

(1) Various pumps in no MOQ and competitive prices.

(2) Professional website platform and one-to-one online service.

(3) We are factory. And we have our own professional R&D department. We accept the order if you want to customize products or design the product.

(4) Fast delivery for normal order, for the bulk quantity, it depends on your specific requirement.

(5) Products are all covered with warranty and insurance.

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2. In case of changes of the specification specified on this document. A written notice is requested in advance.

3. there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4. Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.

The company consists of a professional design department, mold department, injection department , assembling workshop.

All products of the company have independent intellectual property rights and patents. We can independently design and produce. In addition, we can assemble productions in strict accordance with the ISO9001-2015 system. The company has passed ISO9001 certification. "Feiyinsi" is a registered trademark of our company .Based on the soul purpose "we are implementing the principle of “quality and service is the first” all the time, taking the highest industry standard to control every procedure.

Founded in 1999, Yanhua faith is concentrated on the micro pump field’s research and development for 20year, we are only company in China whose positioning is to supply and produce high-end brushless DC pumps and brush dc pump to all countries ,aiming “ to be the dc micro pump field leader and the most influential enterprise”. Just like many professional foreign excellent companies, they focus on one product fro centuries and make the product and the best one in their respective field, this is also what Yanhua Faith pursue. Under this pursuit,our company’s quality police has been targeted at “by the creative spirit ,setting up the micro pump industry’s benchmark, and building up the international high quality”. We devote to 20% profit to R & D department, so we have more than 20 patent in research dc micro pump.

The factory long-term supply micro pumps to the large manufacturers. The micro pump is widely used in home appliances, electronics, cars, vacuum preservation, health care, robot supporting, a variety of environmental monitoring instrumentation and other fields. The working life of our products goes through a variety of environmental testing. The customer's requirements with our own unique technology and design can meet a variety of special industries’ needs( such as high temperature, long life , anti- electromagnetic interference , low noise , oil resistance and other special requirements ) . The company's products are exported to Europe, America , Asia, Taiwan and other places .
