100Kpa pressure electric dc 9v electric medical diraphragm pump
The medium temperature of the micro pump
According to the temperature of the medium which pass through the
pump, choose the ordinary type or the high temperature type.
Electromagnetic interference of micro pump
If there is a precision circuit control in micro pump, depending on
the circuit anti-interference ability, may need to order low
electromagnetic interference micro pump. Now, with the wide
application of micro vacuum pump in various fields and the
improvement of vacuum technology, the performance of micro vacuum
pump is improving, and some fields can replace large vacuum pump.
Working principle: the rotary motion of the motor turn into the
swing of connecting rod which makes the diaphragm up and down
motion. In the process of the downward movement of the diaphragm,
pump cavity will suck medium through the inlet valve; Upward
movement of the diaphragm, pump cavity press out media through the
outlet valve. Mechanical transmission parts and pump cavity is
isolated by diaphragm. Diaphragm pump does not need oil for
auxiliary lubricating, in the process of transmission, extraction
and compression of medium.
9v electric medical pump's parameter and features
1. DC motor with long lifetime
2. Low noise
3. Continuous operation: The pump can sustain heavy duty work for a
day;
4. Compact design, It has good waterproof;
5. Low power consumption, high efficient-save on operating cost;
6. Small and Light-weight, Installation is very simple;
7. Wide application;
8. Perfect for indoor or outdoor use;
9. It can be customized according to customer's technical
requirements.
Model | DX512-1003-2900 |
Size(mm) | 102.4*70*40 |
Voltage(V/DC) | 6V/9V/12V/24V |
Power(W) | 4 |
Free Flow(L/M) | 5 |
Pressure(Kpa) | 100 |
Vacuum(Kpa) | -50 |
Weight | 300 |
Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
9v electric medical pump's demension
Unlabeled tolerance is ± 0.1mm.
Pump Size:102.4*70*40mm
Pump Weight:300g;
Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is
stable and high.
The membrane is made by EPDM and pump's body is made by special
PC/PPS which make pump well endurance and strong chemical
resistance.
9v electric medical pump's production process
Our company has a complete production system.
We has our own mold department, injection molding department,
production and
assembly department, sample room, R & D department, sales
department.
We can independently design and produce pump.
In addition, we can assemble productions in strict accordance with
the ISO9001 system.
9v electric medical pump's application
1. breast pump
2. Beauty equipment
3. Vacuum packaging machine
4. Double-headed electric breast pump
5. Portable ozone sterilizer
6. Vacuum sealing machine
7. Beauty massage
9v electric medical pump's packing and shipping
Packaging:
CTN/PCS: 60PCS
G.W. : 19.5 KG
DIMENSION : 47 * 31 * 25 CM
We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by
DHL/UPS/FEDEX/TNT and others.
The fastest, but most expensive.
You can choose according to your needs.

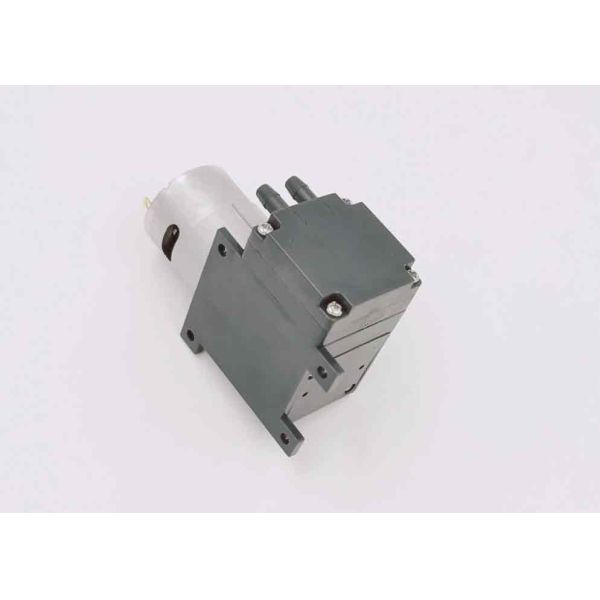

9v electric medical pump's photo
Our company offers multiple component configurations allowing
piston pump to be used for either vacuum operation, pressure
operation, or alternating vacuum and pressure operations.The
innovative, compact design incorporates leading edge technologies
that allow it to operate harder, quieter and longer, reliable,
highly efficient.
Its flow can deliver up to 2 L/min and 18L/M.
Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.
Company Information
Our mold department and injection department is very matured.
We do mold and plastic injection for more than 20years.
We devote to 20% profit to R & D department, so we have more than
20 patent in research dc micro pump. Our engineers has over 15years
professional experience in dc micro pump.
All products of the company have independent intellectual property
rights and patents. We can independently design and produce.
Founded in 1999,yanhua Micro pump Technology company is the leading
and biggest manufacturer specializing in various DC micro pump and
fluid comprehensive solution in China.
Our sale engineers team have more than 16years customers’ service
customer and 15years overseas experience in customer service.
Certifications
All products of our company have independent intellectual property
rights and patents.
We have all kinds of certification, such as Rohs,CE and Reach.
User Instructions
1. will not guarantee the products if the application of our
products are exceeded the limitation which is specified on this
specification.
2. In case of changes of the specification specified on this
document. A written notice is requested in advance.
3. there is any data or related documentation different from this
data sheet.This data sheet is the principle reference.
4. Please do not use it in the environment of corrosive gas or
liquid or any detrimental gas. 5.While the motor is in
operation,please do not lock the motor intentionally for a long
periods,since the continuous stoppage will result in overheat and
thus burnt out the motor.
