CAMA-SM15 Embedded Biometric Fingerprint Sensor For Time attendance /Access
Control System
Product Description

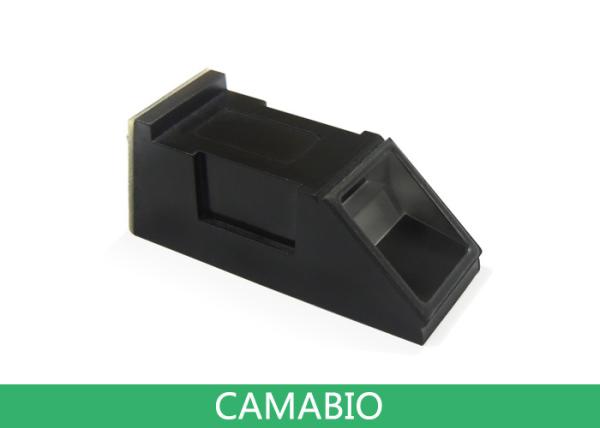

CAMA-SM15 Embedded biometric fingerprint sensor is an ideal
fingerprint sensor module designed for biometric security solution
developer and manufacturers for integration with various
applications such as access control system,time attendance,mobile
device,safe box,door lock and so on.
Powered by world best, multi-award winning CAMA fingerprint
algorithm, CAMA-SM15 embedded biometric fingerprint sensor offers
powerful identification performance .
Product Features
# 3000 fingerprints capacity
# 360 degree identification
# Auto-learning function
# Touch Sense Activation function
# Fast identification speed
# Support 1:1: and 1:N verification
# FAR<0.001% FAR<0.1%
# Anti-scratch prism (K9 glass)
Product Specifications
| Item | Description |
| Fingerprint Sensor | CAMA optical fingerpritn sensor |
| Fingerprint Scan Area | 18mm x 20mm |
| Fingerprint Image | 242 pixel x 266 pixel |
| Fingerprint Image Resolution | 500 DPI |
| Fingerprint Template | 496 bytes |
| Communication Interface | UART (3.3V) |
| FRR | <0.1% |
| FAR | <0.001% |
| Identification Speed | 1:1<0.5s; 1:N(2000 fingerprints) <0.9s |
| Fingerprint Capacity | 3000 Fingerprints |
| Work current | < 100mA |
| Standby current | < 20μA |
| Power supply | DC 3.3V |
| Working temperature | -10- 60 |
| Working humidity | 20% 80% |
Product Size
Connector And Signal Description
| Pin No. | Signal name | Signal Description |
| PIN 1 | Touch Power 3.3V | Touch sense function need to supply power separately (It is
better the power can be controlled). Power: DC3.3V± 0.1V
Current:1.5uA to 2.5uA |
| PIN 2 | Finger Detect | Output high level when detected finger, and output low level
once finger left |
| PIN 3 | UART-TX | Module Transmit Output,3.3V TTL Logic |
| PIN 4 | UART-RX | Module Receive Input,3.3V TTL Logic |
| PIN 5 | GND | GND |
| PIN 6 | VIN | DC Input, Range of Voltage is 3.3V±10% |
| PIN 7 | FP Reset | Reset at low level (reset time>100ms), Work at high level. After
Reset, it will cost about 350-400ms for system initializing and
programs loading; Only after that the module can communicate
with MCU by UART |
Technical Support
To support you electronic engineers to do developing works, CAMABIO
will provide you following materials after you bought the product
1. User Manual of CAMA-SM15 ( Command Protocols Included)
2. DEMO Software For Testing Purpose
3. Sample Code For Micro controller Unit
If you have any technical questions before you buy CAMA-SM15
Embedded biometric fingerprint sensor , you can contact camasales01@camabio.com for support.
Product Applications
CAMA-SM15 Embedded biometric fingerprint sensor can be widely used
for following products
1. Fingerprint door lock system
2. Biometric access control system
3. Biometric time attendance system
4. Fingerprint car starter
5. Fingerprint safe box lock
6. Fingerprint car fleet management system
...
