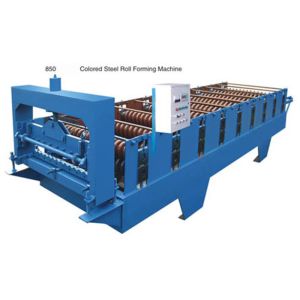

Color Corrugated Shape Roll Forming Machine
Product Application
The double-layer presses are rolled and molded, which are both
solemn and elegant, and are beautiful and beautiful. The appearance
is smooth, ripple is uniform, the utilization rate is high, the
strength is high, the production automation is high, the cost is
low and durable. Double-layer tile machine products and Color
Corrugated Shape Roll Forming Machine are widely used in large and
medium-sized enterprises of civil construction, such as plant,
garage, hangar, stadium exhibition hall, theaters and so on.
1. Technical Parameter
| Item | Specification |
Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness | 0.3-1.2mm |
| Yield strength | 235-345Mpa |
| Roller material | 45#Chrome steel |
| Forming speed | 20-25/min |
| Output speed | 8-10m/min |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi screen |
| Main motor | 7.5KW |
| Hydraulic station motor | 5.5KW |
2. Roll Forming Machine Components
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
3. Working Process Flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting –
receivig table in Color Corrugated Shape Roll Forming Machine
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our
factory.
6) Q: Do you have this machine in stock?
A: No, machine is made to order.
