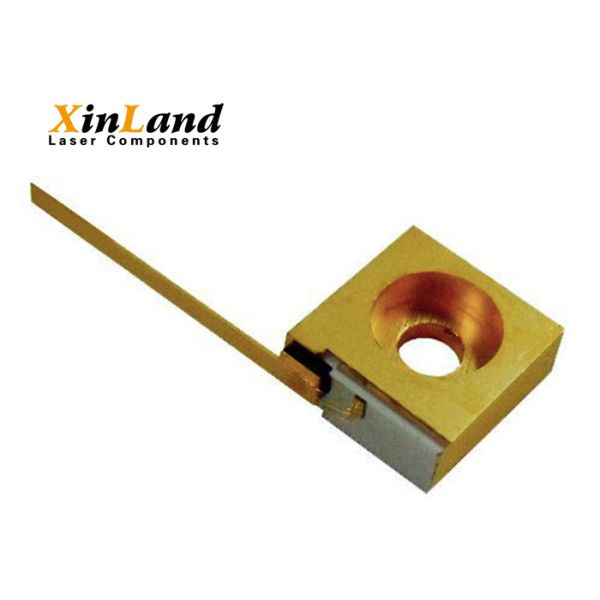

    C Mount 940nm 5W Micro Laser Diode For Medical Laser Equipment CW

    Ask Lasest Price
    Brand Name : Xi'an Xinland
    Model Number : XLD-940-005-C
    Certification : N/A
    Price : Negotiated
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 5000 units each Month
    • Product Details
    • Company Profile

    C Mount 940nm 5W Micro Laser Diode For Medical Laser Equipment CW

    C-Mount Micro 940nm 5W Laser Diode For Medical Laser Equipment CW High Power



    Features:
    940nm
    CW
    C-MOUNT

    Application:
    Medical Laser Equipment
    Laser Indicator
    Laser Detector

    C-mount package


    Technical Datasheet:

    Reverse Voltage

    Vr

    2.0

    V

    Operating Temperature

    Top

    +10~+30

    °C

    Storage Temperature

    Tstg

    -20 ~ +80

    °C

    Lead soldering temperature (10 sec.)

    Tis

    260

    °C


    Laser Specification :

    Min

    Type

    Max

    Center Wavelength@25°C

    +/-5nm

    940nm

    +/-10nm

    Spectral Width (FWHM)

    ----

    4.0nm

    ----

    Output Power

    ----

    5W

    ----

    Emitter Area


    200x1μm

    Beam Divergence (FWHM)

    ----

    35° x 8°//

    ----

    Temperature Coefficient of Wavelength

    ----

    0.3nm / °C

    ----

    Slope Efficiency

    1.0mW/mA

    ----

    Threshold Current (Typ.)

    ----

    0.7A

    1.0A

    Operating Current (Typ.)

    ----

    5.3A

    5.5A

    Operating Voltage

    ----

    1.5V

    1.8V


    940nm C-mount Drawing :



    Safety Information

    ◆ Avoid eye exposure to direct or scattered radiation.
    ◆ ESD precautions must be taken.
    ◆ Use constant current power supply.Avoid surge current.
    ◆ Laser diode must be used according to the specifications.

    ◆ Laser diode must work with good cooling.

    ◆ Storage:-20°C~+80°C
