X3312/14NiCr14/DIN1.5752/655

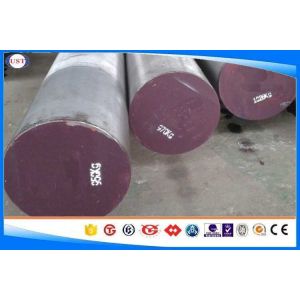

M13/EN36A/15NiCr13/DIN1.5752/SNC81/3310 hot forged steel rod with Q+T/Black/Grinded
APPLICATIONS:
Heavy Duty Bushings, Collets, Conveyor Pins, Heavy Duty Gears, King
Pins, Ring Gears, Sprockets, Shafts, heavy-duty gears, collets etc.
Or can be used for high tensile applications uncarburised but
through hardened and tempered.
Chemical Composition(%):
Carbon 0.10-0.16
Silicon 0.10-0.40
Manganese 0.35-0.60
Nickel 3.00-3.75
Chromium 0.70-1.00
Phosphorous 0.04 max
Sulphur 0.04 max
Colour Code White (Bar end)
Process: EAF+LF+VOD+Forged+Heat Treatment(optional)
SIZE RANGE:
Round:
Hot Forged: 80mm -1200mm
SURFACE FINISHES:
Black, Peeled (K12), Cold Drawn, Turned & Polished (H10, H11),
Precision Ground (H9, H8)
Test: Ultrasonic test according to SEP 1921-84 3C/c
Package: Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with
several steel strips, Two tags on each bundle, Wrapped in
waterproof paper, PVC sleeve, and sackcloth with several steel
strips.
Delivery time: Within 4-6 weeks
Payment: T/T or L/C
Mill′s test certificate:
EN 10204/3.1 with all relevant data reg. chem. composition, mech.
properties and results of testing.
