Fire-proof ACM Aluminum Composite Material PVDF Coating For
Construction Decoration
Description:

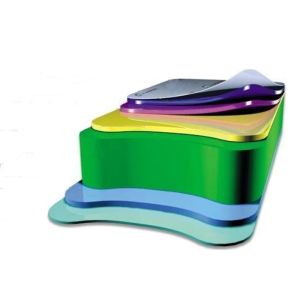

WILLSTRONG ACP is one kind of metal composite material, with a
sandwich structure, 2 layers of Aluminum Skin on front & back, and
inside is polyester core with or without fireproof filler. It's one
kind of very popular building decoration material for interior or
exterior using.
Features
Smooth surface coating
Excellent impact resistance
Outstanding weather & UV resistance
Light weighted
Cost efficient
Good heat & sound insulation
Easy to process, install and maintain
Fabulous dimensional stability
Splendid corrosion resistance
Diversified colors
Recyclable
Specifications:
Polymer film: America Dupont brand;The adhesive material is not
lower than 60%
Coating Coating Type PVDF, Flurocarbon Powder >70% (Kynar 500)
Coating Thickness >25 microns
Specification Aluminum Skin Alloy 1100 H18, 3003 H24, 3105 H14
Thickness 0.2, 0.3, 0.4, 0.5mm
Core Non-toxic PE core
FR mineral Filled Core (B1 class)
Width 1220, 1250, 1500mm
Special width available upon request
Length 2440, 4880mm, any up to 5800mm
Total Thickness 3, 4, 6, others from 1mm to 10mm all available
Standard Size 1220X2440X3mm
1250X2440X4mm
Application:
1) Building exterior curtain walls
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and
balconies
4) Shop door decorations
5) Advertisement board display platforms and signboards
6) Wall boards and ceilings for tunnels
7) Industrial materials, materials for vehicles and boats
Projects photos:
