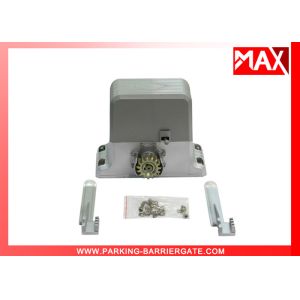

Automatic Gate Operators System With Steel Gear Rack and Flash
Light
Key words: sliding gate opener ,sliding gate operator , sliding gate motor,
sliding door opener , sliding door operator , sliding door motor,
automatic sliding gate opener ,solar sliding gate opener , Dc motor
, gate opener , automatic door operators
Our Advantage
1) Integrated mechanical and eletrical,all functions on one
controller
2) Radio controller or linesto control open,close and stop
functions
3) Magenetic limit switch,the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation-if an obstacle is detected when the door
is closing,it will reverse to
open,then after 10 seconds it attempts to close automatically
unless you press the stop
keystroeke.
9) Movement indication-the indicator lights up when the door is
moving.
10) Optional line control or remote control
Technical Data
| Working Voltage | AC220/110V |
| Frequency | 50/60HZ |
| Power | 350W |
| Torque | 350nm |
| Remote control distance | ≥30m |
| Maxload weight | 1800KG |
| Net weight | 10KG |
| Manual Release | Yes |
| Packing list |
| Name | Quantity | Unit | Remark |
| Sliding gate operator | 1 | set | Necessary |
| Remote control | 2 | pcs | Necessary |
| Internal hexangular bolt | 4 | pcs | M8*40 |
| Internal hexangular bolt | 4 | pcs | M6*16 |
| Left limit iron | 1 | pcs | Necessary |
| Right limit iron | 1 | pcs | Necessary |
| Base board | 1 | pcs | Necessary |
| Release key | 2 | pcs | Necessary |
| Manual | 1 | pcs | Necessary |
| Infrared photocell | 1 | set | Optional |
| Radio emitter | 1 | set | Optional |
Communication with customers:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is
right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether
it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same with
the code of the control panel.
