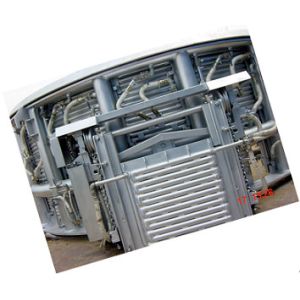

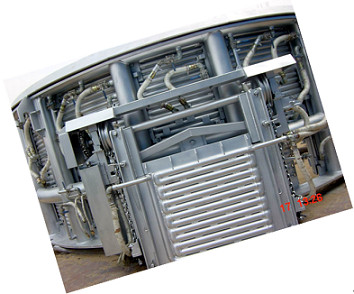

Large Water Cooled Panel / Water Cooled Roof Receive Cooling Water From A Cooling Tower

Water cooled panel Water-Cooled Furnace Products basic oxygen furnace

• Water cooled system composing of water cooled panels, water cooled roof and water cooled elbow is an integral part in the operation of an electric arc furnace.

• Typically, there are several water cooled systems. Some operations require extremely clean, high quality cooling water. Transformer cooling, delta closure cooling, bus tube cooling and electrode holder cooling are all such applications. These systems will consist of a closed loop circuit, which conducts water through these sensitive pieces of equipment.

• The water in the closed loop circuit passes through a heat exchanger to remove heat. The circuit on the open loop side of the heat exchanger flows to a cooling tower for energy dissipation. The water cooled elements such as water cooled panels, water cooled roof panels, water cooled offgas system ducting, water cooled furnace cage etc. will receive cooling water from a cooling tower.

• The cooling circuit consists of supply pumps, return pumps, filters, a cooling tower cell or cells and flow monitoring instrumentation. Sensitive pieces of equipment normally have instrumentation installed to monitor the cooling water flow rate and temperature. For most water-cooled equipment, interruption of the flow or inadequate water quantities can lead to severe thermal over loading and in some cases catastrophic failure.

Beijing Sino Steel Engineering & Equipment Co., Ltd. is concentrating on developing of ferrous & non-ferrous making and Rolling technology, mainly.

As one of the most experienced Chinese suppliers of complete line and components for steel and non-ferrous industries, Beijing Sino Steel Engineering & Equipment Co., Ltd. is engaged in design, manufacturing, engineering and service activities on word-wide basis.

Overseas Partners (Office):

India, Indonesia, Malaysia, Thailand, Korea, Turkey, UAE, Qatar, Iran, Saudi Arabia, Kuwait, Germany, France, Canada, USA, Brazil, Etc.

MAIN SCOPE SUPPLY:

EPS Project Line:

EAF, LF, Continuous Casting Machine, Preheating Furnace, Hot Rolling Mill Line, Cold Rolling Line, Centrifugal Casting Line, Slitting Line,Cut-to-length Line, Cleaning Line, Pickling Line, Coating line, Levelling line, Billet grinding line ETC.

Components & Parts:

Mill stand, Coiler, Uncoiler, Gearbox, Leveller, Copper Mould Tube, Copper Mould Plate, Water Jacket, Water Cooled Cable, Forged Rolls, Casting Rolls, Roll Shell, Roll Core,Bearing, Universal Shaft, Lathe, ETC.

​
