    Cladding Sheet Making Cold 0.4mm Roof Roll Forming Machine Easy Operate

    Ask Lasest Price
    Model Number : floor decking Machine
    Certification : CE
    Price : on discuss
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

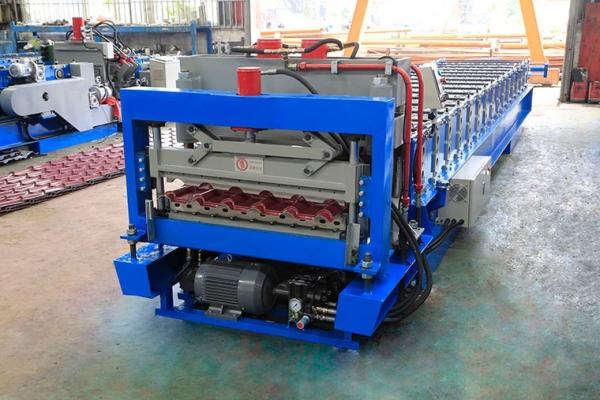

    Cladding Sheet Making Cold 0.4mm Roof Roll Forming Machine Easy Operate

    Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate


    Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table

    2. Components of line:

    No.NameUnitQty
    1Decoilerset1
    2Main Machine for roll formingset1
    3Control System(PLC)set1
    4Pressing Systemset1
    5Cutting Systemset1
    6Output Tableset1
    IBR Roof Sheet Roll Forming Machine Popular in South Africa DescriptionIntroduction
    Working efficiency

    8-12m/min


    Thickness of Material

    0.3--0.8mm

    (can be changed according to customers need)


    Width of material

    914mm;940mm;1000mm;1200mm;1220mm;1250mm

    According to customers need


    Control system

    PLC(The brand can be choose)


    Uncoiler system

    5Ton Manual Operation(1250mm width)


    Forming by rolling

    13 rows

    (According to the machine design)


    Roller material

    GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated


    Shaft and the diameter of axle

    45#Aluminium-processing ,diameter of axle=80mm


    Main part power

    5.5kw


    Hydraulic motor power

    4kw


    Hydraulic pressure

    12Mpa


    Scissor material

    Cr12Mov, herd steel HRC 58-62°C


    length tolerance

    ±1.5mm


    voltage

    380V, 50HZ,3 phase

    (adjustable by customer needs)


    Frame form

    Middle plate


    Driving Method

    Chain


    Color

    Yellow and blue(adjustable)


    Size

    length*Width*Height - 8.2*1.65*1.5m


    weight

    about 5.0T


    Package

    Nude package in 1*20GP container


    Delivery date

    30 working days


    Payment Method

    30% T/T in advance and balance

    70% after inspection confirmation before shipment.


    If you have your own drawing, please send it to us,

    we can design the machine, depend on your drawing.
