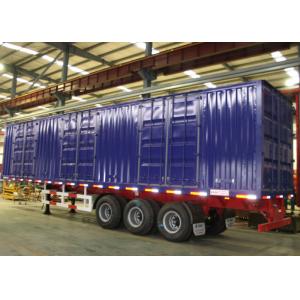

50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles

    Buy cheap 50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles from wholesalers

    Buy cheap 50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles from wholesalers
    • Buy cheap 50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles from wholesalers
    • Buy cheap 50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles from wholesalers
    • Buy cheap 50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles from wholesalers

    50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles

    Ask Lasest Price
    Brand Name : GET
    Model Number : 9323XXY-GB
    Certification : ISO9001/TS16949
    Payment Terms : L/C, T/T
    Supply Ability : 100 units per month
    Delivery Time : 20 WORKING DAYS
    • Product Details
    • Company Profile

    50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles

    50ft Closed Steel dry freight box Trailer with 3 axles for bulk and case packed cargos


    Dry Freight truck Box or van trailers are the most common type. They are quite simply a metal or composite box on wheels with some doors on the back, though some offer additional access doors on the sides.


    The Dry Freight truck body we supplied with composite panels, Core Material with XPS, Waterproof Plywood, Honeycomb, composited with Surface material of FRP, Aluminum Plate or Steel Plate for different Dry Cargo box demands.


    50ft Closed Steel dry freight box Trailer with 3 axles for bulk and case packed cargos9323XXY-GB
    overall outside dimension (mm)Length14600
    Width2550
    Height (unload)4000
    Outside dimension of Drop Side body (mm)Length14400
    Width2528
    Height2500
    capacity(L)
    GVW(kg)40000
    vehicle total weight(kg)8000
    rated payload(kg)32000
    Wheel base(mm)8000+1310+1310
    Tread(mm)Tread at front
    Tread at rear2040/2040/2040
    Front/Rear Overhang(mm)/2380
    Approach/Departure angle(°)/13
    Rated payload of Vehicle saddle16000
    AxleBPW 12T*3
    Axle Capacity kgs/8000/8000/8000
    Tyres425/65R22.5*6
    Trailer MaterialCarbon Steel
    Transport Material :Bulk or Light box cargos
    Twist Locks
    Insulated Covernile
    SuspensionAIR SPRING SUSPENSION
    Leaf Spring
    Remark:
    BOX WALL MATERIAL:
    CARBON STEEL PAD OR CORRUGATED SHEET
    Frame Structure
    Tail Door: Steel pad with Container lock
    WABCO Brake System, Clearance: 540m
    Floor: 3mm Checked Steel Flatbed
    Option: Floor center Moveable parts for Roil and Heavy Srcroll with fix system
    Steel Structure:
    Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
    Floor:3mm thick checkered steel plate.
    OEM Parts Configuration:
    King Pin: 3.5” /2” exchangeable king pin, Supplier: JOST.
    Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T.
    Suspension:Mechanical suspension with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension
    Axles: square axle with 12/13/14/15/20 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in China..
    Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 ,
    Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS.
    Brake Chamber: 30 type on front axle.30/30 type on other axles,
    Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO
    Others:
    Spare Tire Carrier: Equipped two sets per chassis without spare tire.
    Side Guard: Steel.
    Tool Box: Equipped one set.
    Painting: Color by customer’s requirement.
    Marking: By customer’s requirement.
    Options: Oil Tanker: 300L carbon steel.
