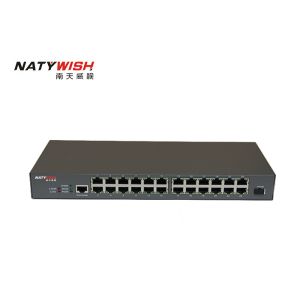

24 ports EPON ONU MDU with 1 PON port , 24 * 10 / 100 / 1000M
ethernet electrical ports
----- NTW-E172400H
Product Overview
NTW-E172400H series is a MDU device designed by NATYWISH,integrated Ethernet
switch and optical network unit ONU function,can combine well with
OLT to built an efficient EPON solution,well satisfies the
application of broadcast and television bidirectional network and
FTTO/FTTB.Completely meet the standard of IEEE802.3ah and YD/T
1475-2006.
Product Advantage
NTW-E17800H is an optical network device that meets current market
requirement.
1. One MDU supports 24 ethernet ports(RJ45 port) and one EPON port.
2. EPON: Meet IEEE802.3ah and YD/T 1475-2006 stand .
3. System capacity: 24 ethernet RJ45 ports, achieve ONU and
ethernet switch mixing together in the EPON+LAN access solution.
4. Size :1U, occupies less space in the computer room, consumes
less power and reduces the operating cost of the business.
Product Feature
1. Using point to multi point network topology,effectively collect
dispersed user ethernet business then converged in the metropolitan
area network node.Provide standard RJ45 Fast Ethernet interface on
user side,achieve smooth interconnection with existing networks .
2. Dynamic bandwidth allocation(DBA) enables all users to share
1Gbps bandwidth more reasonably,achieve a reliable quality of
service guarantee (QoS).
3. Support IGMP multicast and make full use of broadband.
4. Support port isolation.
5. Support ethernet loop detection,automatically identifies whether
exit ethernet loop block,when the loop disappears, it will
automatically recover.
6. Support VLAN multicast.
7. Support 2-7 layer ACL filtering.
8. Support remote loopback, remote diagnostics network status.
9. OAM design,includes configuration, alarm, performance
monitoring, fault isolation and security management ,provides both
remote administration through OLT and local console management.
10.industrial application.
Technology Parameter
Model
| NTW-E172400H |
| Port |
24*10/100/1000BASE-T ethernet LAN port. 1 PON port.
|
| System capacity |
Splitting ratio:1:64.
|
| PON |
Uplink and downlink symmetric,1Gbps. Rx sensitivity: no less than-30dBm. Security : ONU authentication mechanism. Network coverage radius : 30km.
|
| Standard |
IEEE802.3ah. IEEE 802.1D, Spanning Tree. IEEE 802.1Q, VLAN. IEEE 802.1w, RSTP. IEEE 802.3ad physical link static / dynamic aggregation(LACP). Ethernet – II, Ethernet-SNAP. IEEE 802.3ad VLAN Stacking( Q in Q).
|
| Service quality |
Back pressure flow control (half duplex). IEEE 802.3x flow control (full duplex). IEEE p802.1p, CoS. WRR , SPand FIFO queue scheduling algorithm. Support 802.1P/DSCP priority Mark/Remark. Uplink and downlink speed limiting per ONU. Support DBA and SLA.
|
| VLAN |
Port VLAN. IEEE802.1Q VLAN relay. QinQ,and support flexible QinQ.
|
| Multicast |
IGMP v1/v2/v3. IGMP Snooping. Multicast VLAN,controlled multicast .
|
| Reliability |
Single direction link detection protocol prevents the survival tree
loop. Expansion slot, EPON optical module hot plug. EAPS fast loop protection function. EPON optical path protection.
|
Network security |
Limit the maximum number of users per port. Port isolation. Message storm control. ACL access control function of data stream. PON port transmission data encryption.
|
| Configuration and management |
CLI, Web, SNMP, TELNET,clustering etc management. RMON v1, 1,2,3,9 group. SSHv1/v2. Software upgrades and bootrom upgrades can be made through TFTP and
FTP. Local or server record syslog. Command prompt in Chinese and English. ping, traceroute network testing tools, output debug.
|
| Size |
440mm ×180mm ×44mm . installation: rack mount / wall hanging.
|
Weight
| <2kg. |
| Environment requirement |
Working environment:-40℃～65℃；10%～90% non-condensing.
|
Storage environment:-50℃～80℃；5%～95% non-condensing.
|
| Power supply |
Input voltage:AC100～240V,input frequency:47～63Hz. Input current:1A/230V.
|
Order Information
Model
| Description |
NTW-E17400H |
24 ports industrial EPON ONU
|
