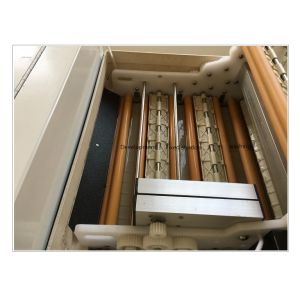

HUATEC HDL-K14B NDT bright room film washing machine film processor
HDL-K14B is a film flushing machine operated in the bright room. It
is simple and simple in structure. It is especially suitable for
scientific research colleges, laboratories, vehicle mobile
operations, small medical institutions, and photographers.
The film processor is a fully automatic desktop processor. Film is
developed, fixed, washed and dried in four steps.
The film processor can automatically develop film and has a standby
status program. The developing temperature can be adjusted, and the
medicine solution for the tablet is automatically circulated.
This user manual will provide you with important guidelines in the
installation and operation of machine maintenance. Please read the
guide carefully.
Characteristic:
1. new design, no need to supplement fluid can also be normal
2. The display and fixing potions are specially designed, and the
potions are fully flowing to prevent oxidation and crystallization.
3. integrated development, fixing, washing and drying. It can also
ensure that no film is flushed in any working condition and achieve
high-quality image effect.
Technical parameter
The size of the film is 8 x 10 cm to 35 cm wide
Running time of 105 seconds, 135 seconds and 165 seconds
The entry speed is 280 mm / min (running time is 105 seconds).
The developing time was 28 seconds, 33 seconds, 35 seconds,
6 liters of the volume of the drug tank (each addition capacity)
The developing temperature can be adjusted from 28-37 degrees
The setting temperature is automatically adjusted according to the
developing temperature
65 degrees of drying temperature
5~30 degree of water temperature
Water consumption film running 1.6 litres / min (Flushing film)
Power 220~240V6A 50 or 60Hz
38 kilograms (no liquid in the slot)
Volume (long * width * high) 82 x 52 x 42 mm
The dark box of HDL-K14B punching machine is made of special
Polaroid material. The user can see the whole process of the dark
box loading and film flushing, and the bright room is washed
without the need for the establishment of a dark room.
Chemical solution
Chemicals should be mixed according to the manufacturer's
instructions, stir well, and filled into 5L fixing tanks and 5L
developing tanks in their respective containers. Be careful not to
spill different chemical liquids into other liquids. Otherwise the
fixing will damage the developer.
Development temperature setting

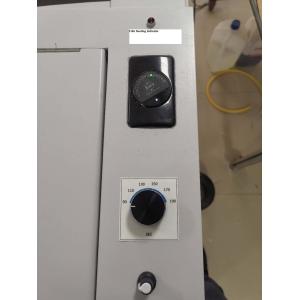

The temperature control panel on the front of the processor is
adjusted to the temperature required for the washing process
(generally set at 26-39 ° C). When the development heating
temperature is set, the heating indicator changes from red to
green, which indicates that the film can be fed.
Run time setting
The speed on the front of the film is adjusted to the time required
for the processing process (6-7 minutes is generally used for
processing industrial flaw detection films).
Use of film processor dark room
The user does not need to build a dark room intentionally (to
ensure that the X-ray film is exposed during the dark bag loading
and film processing); the loading and processing of the HDL-K14 NDT
portable industrial flaw detection X-ray film processing machine
can complete in the black box, so that it is suitable for vehicle
movement.
Note: If the ambient light is too strong, cover the see-through red
light board to avoid film exposure.
X-ray film processing
The film processor has adjusted the temperature and running time.
The temperature indicator changes from red to green, and the
machine enters the standby state. The X-ray film can be processed.
The X-ray film must be sent on the left side of the film feeding
plate. ( film sending sensor is on the left side of the feeding
plate); when the sensor senses the film, the machine motor and
drying system start to work, and the second X-ray film can be sent
after the first film head comes out of the drying section. After
the X-ray film comes out, the machine will stop running after a
period of time, and the machine will automatically enter the
standby state.
