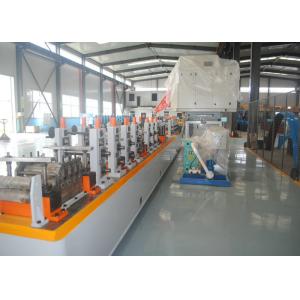

Precision Tube Mill 25-76mm High Frequency Welding Machine

    Buy cheap Precision Tube Mill 25-76mm High Frequency Welding Machine from wholesalers

    Buy cheap Precision Tube Mill 25-76mm High Frequency Welding Machine from wholesalers
    • Buy cheap Precision Tube Mill 25-76mm High Frequency Welding Machine from wholesalers
    • Buy cheap Precision Tube Mill 25-76mm High Frequency Welding Machine from wholesalers

    Precision Tube Mill 25-76mm High Frequency Welding Machine

    Ask Lasest Price
    Brand Name : Tengtian
    Model Number : HG60
    Certification : CE,ISO9001,BV
    Price : $100000 to $1 million
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 30 Sets/Year
    Delivery Time : 60 work days
    • Product Details
    • Company Profile

    Precision Tube Mill 25-76mm High Frequency Welding Machine

    White Color High Precision Welded Tube Mill Machine Low Power Consumption
    Packaging & Delivery

    Packaging Details

    sea worthy simply packaged or according to the customers' requirement for WG219 Steel pipe electric resistance weld mill

    Delivery Time

    90days after receiving the deposit

    Specifications

    High precision erw steel tube mill
    1.pipe O.D:89-219mm(3.5~ 8.6inch)
    2.Square pipe:70X70-170X170mm
    3.Wall thickness:4.0-8.0mm


    WG219-A (large diameter) High precision erw steel tube mill :

    1.pipe O.D(round):89mm-219mm(Φ3.5~ Φ8.6inch)

    2.Square pipe:70X70mm-170X170mm

    3.Wall thickness:4.0-8.0mm

    4.length:4-12m

    5.Speed:0-40m/min

    6.Main motor:200Kwx2

    7.H.F welder:600Kw


    Craft Flow:


    uncoiling→shearing and butt welding→material accumulating→flattening→forming system

    →high frequency induction welding machine→inside and outside burr removing frame→

    water cooling system→sizing system→leveling system→speed testing→Turkish frame→

    saw cutting→running out table


    Main components:


    1Uncoiler
    2Accumulator
    3Shearing and butt welding machine
    4Forming machine
    5Roller System of Forming
    6Seam Guide
    7High Frequency Induction Welding Machine
    8Roller System for Moving
    9Burr Removing Frame(Inside and outside)
    10Water cooling system
    11Sizing machine
    12Roller System of Leveling
    13Speed Testing Wheel
    14Turkish Frame
    15Auto flying saw controlled by Computer
    16Run-out table
    17Electric control Equipment
    18High frequency welding machine

    necessary accessories prepared the Buyer :

    1Workshop,Foundation construction
    2electric appliance work,civil engineering and necessary materials.
    3Electric connection wires and cables ,pipes(including connectors) from Power supply,air supply,water supply and hydraulic station to each equipment(control table,button station) of the production line
    4Auxiliary machine :for example lifting equipment,air compressor,air storage tank,water pump,high-pressure pumps for pipe welding machine cooling,cooling water pools for pipe-welding machine and high frequency electric equipment, volume 35m3with water pipe, water pressure meter and valve
    5Auxiliary parts and low value consumable items :for example:steel strip,welding strip,blades,Lubricating oil, cycle oil, gear box oil test run material, magnetic rod, bearing etc.


    ModelDiameter RangePipe ThicknessLine Speed(m/min)
    HG208-25.4MM0.3-1.2MM120
    HG3210-32MM1.4-1.5MM120
    HG5016-76MM0.7-2.5MM30-120
    HG7625-76MM1-4MM30-100
    HG8932-89MM1-4.5MM30-80
    HG11445-114MM1.5-5.0MM30-60
    HG16560-165MM3-7MM30-50
    HG219114-219MM4-8MM20-40
    HG273114-273MM4-10MM15-30
    HG325165-325MM4-10MM10-30
    HG426165-426MM4-12.7MM8-25
    HG508219-508MM4-16MM8-20

    General introduction of erw pipe mill

    KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.


    They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.


    After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.


    Applied raw material of erw pipe mill

    Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.


    ube Application

    Tube/pipe from our tube millcan be used as below area:

    1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
    2. Heating Pipe 8. Structural Support Steel Pipe
    3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
    4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
    5. Sewage Pipes 11. Water Pipe
    6. Steel Scaffolding Pipe 12. Building pipe

    6. Steel Scaffolding Pipe 12. Building pipe

    Packaging & Shipping

    Electrical panel shipped should be sea worthy packing and treated by anti-rust,
    the cargo shall be properly packed in seaworthy packing to the specific items.
    The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.
