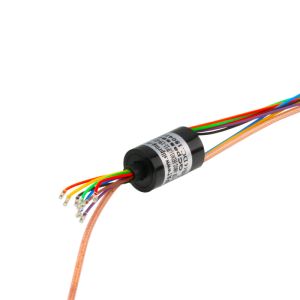

Miniature Capsule HD Rotary Joint Slip Ring Transferring HD Video Signal

Name: Miniature Capsule HD Rotary Joint Slip Ring Transferring HD Video Signal
Brand: JINPAT
Price: 1 USD

Ask Lasest Price
Brand Name :	JINPAT
Model Number :	LPM-12F-0802-HD01
Certification :	ISO9001.ISO14000.CE.UL.FCC.RoHS
Price :	Negotiable
Payment Terms :	TT/CC/Paypal
Supply Ability :	50K units/week
Delivery Time :	12days ARO

Add to Cart

Product Details
Company Profile

Miniature Capsule HD Rotary Joint Slip Ring Transferring HD Video Signal

Miniature Capsule HD Slip Ring Transferring Current and HD Video Signal

Description

The HD-SDI slip ring is a kind of capsule slip ring that supports current, signal (including HD-SDI video signal) transmission. All military standardraw materials permit a high temperature resistance and ensure a high-quality transmission. Such slip rings, guaranteed by a full-fledged quality management system, have a large productivity of 5 million pieces per year, qualified an ultra-long operational life span.

It’s worth noting that customization is supported in spite of standard units available.

Specification

Circuits	8 circuits* 2A, 1circuit*SDI
Working Voltage	100 VAC/DC
Dielectric Strength	Between circuits≥100VAC@50Hz
Insulation	10MΩ@100VDC
Electrical Noise	≤15mΩ/35mΩ
Working Speed	0~300 rpm
Contact	Gold to Gold
Housing	Engineering Plastic
Wire Size	RG178 Coaxial wire, φ0.8-AWG28#Silver Plated
Temperature	-20°C~+60°C
Humidity	≤60%RH
IP	IP54
Life	5 million revolutions
