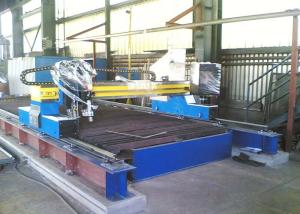

Steel CNC Plasma Cutting Machine CNC2-1500X3000 Table Type Flame
High Accuracy
Description:
Operation and maintenance of a fool-CNC flame design, dual-use
plasma cutting machine, is devoted to sheet metal cutting CNC
equipment.
To achieve a variety of metal materials by any graphic material
cutting next,after cutting the cut surface under normal
circumstances does not require processing on the surface.
With a high degree of automation, easytouse, high accuracy, high
reliability and low price, operation, maintenance, etc.
Components of Plasma Cutting Machine:
A: Main machine assembly including: rack, beam, moving parts, pipe
parts, transverse slide line rack, vertical and transverse
transmission parts and so on.
B: Plamsa torch or flame torch.
C: Electric control assembly including : electric cabinet,
longitudinal and transverse motors and accessories.
D: Gas assembly including : general pipe for three way of gas
supplyelectromagnetism valvepressure gaugetemper preventing
equipment and so on.
E: Height adjustment: Torch Height Controllor (can cut different
height material ).
Features:
1. Low noise and high running accuracy.
2. Occupies a small place.
3. Operates with high efficiency.
4. Cuts automatically with high precision and uses materials
effectively.
5. It is of compacted design, light weight and is small in size.
6. It is easy to move, suitable for the site indoor or outdoor.
7. The control system is independently designed and developed with
optimized programming, easy to learn and operate.
8. The operation interface, simple and clear, can store over 80
programs.
9. LCD screen of dynamic and static display of graphics can convert
the CAD file to the programmed one in the computer and transmit it
to the machine via a USB flash disk before automatic cutting
performance which can also be made by inputting the simple
instruction in the machine for programming cutting.
Technical Parameters:
| Model | CNC2-1500 | CNC2-2000 |
| Effective cutting width | 1500mm | 2000mm |
| Effective cutting length | 2000-6000mm |
| Driving speed | 0～24000mm/min |
| Guide precision | ±0.2mm |
| Vertical precision | ±0.3mm |
| Integrated line precision | ±0.5mm |
| Cutting precision | German D/N 2310 standard industrial grade standard |
| Cutting torch quantity | 1 |
| Cutting method | Flame or dry type plasma or fine plasma |
Application:
CNC Table Type Plasma and Flame Cutting Machine is one kind of
multi-functional high-efficiency and high-precision cutting
machines.
It can cutting vertical and horizontal straight-line, as well as
cutting customized freewill geometrical shape.
Frame-type structure with good rigidity and intensity, Hi-win
liner, brand automatic digital AC driving, high quality gear
gearbox, steady and easy in operation and excellent in precision.
Cutting Samples:
