| Brand Name : | ITD/OEM |
| Model Number : | ITD10CMN1M1 |
| Certification : | CE, FCC, RoHS |
| Price : | TBA |
| Payment Terms : | T/T, PayPal(173515844@qq.com) |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | 5-15 Business Days |

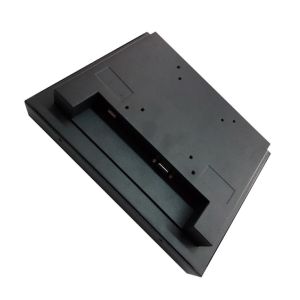

10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use
ITD Industrial chassis LCD Monitors are designed for those industrial and process control environments that require a stand-alone wall mounted display that does not need a complete seal from oil, dust, and other contaminants. These cost-effective LCD monitors support fast and slow-scan horizontal frequencies and are available with optional resistive, IR, SAW or capacitive touch screens.
BENEFITES
-Long lasting product cycle-enclosure. Future generation panels phased-in without external changes
-Display Only, Resistive (4 or 5 wire), SAW, IR and Capacitive touch options
-Available in standard (4:3) and wide (16:9)
-High quality panel with 150° x 140° viewing angle. 170° x 170° IPS panel optional
-Mounting includes side mounting, rear-mount and VESA mount (front mount optional)
-VGA ,DVI and HDMI inputs with USB for touch and external AC/DC power.
Chassis LCD Monitor | |
| Model Name | ITD08CMN1M1 |
| IP Rating | N/A |
LCD Panel | |
| Screen Diagonal (Inch) | 8.4” |
| Display Active Screen Size (mm) | 170.4(H)×127.8(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 800×600 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 262K |
| Brightness (cd/m²) | 230 |
| Contrast Ratio | 600:1 |
| View Angels | 80/80/60/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
Touch Panel | |
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
Input / Output | |
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
Operation | |
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
Power | |
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 10W |
Order Information | |
| 8.4”Chassis LCD Monitor with Resistive Touch | ITD08CMT101 |
| 8.4”Chassis LCD Monitor with IR Touch | ITD08CMT201 |
| 8.4”Chassis LCD Monitor with SAW Touch | ITD08CMT301 |
| 8.4”Chassis LCD Monitor with PCAP Touch | ITD08CMT501 |
| 8.4”Chassis LCD Monitor with Tempered Glass | ITD08CMG101 |


APPLICATION


|
