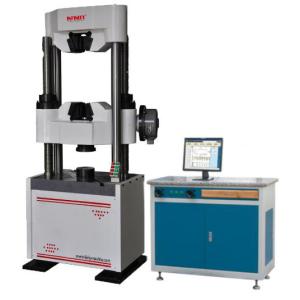

Purpose:
Computer screen display hydraulic UTM mainly adopts main machine of
underneath -type oil cylinder, worm gear
drive, mainly used in mechanical property test in the way of
tensile, compression, bending and shearing for metal,
nonmetal, composite material and product, etc. And it can also
conduct test and data process according to GB,
ISO, JIS, ASTM, DIN and standards user provides.Widely used for
check and analysis on materials in industries
including building construction, metallurgy, aerospace and machine
manufacturing, it is ideal testing equipment
for scientific research institutions, institutions of higher
education, industrial and mining enterprises,
technical supervision, arbitration inspection department and other
departments.
Specification:
| Model | IN-300EC | IN-600EC | IN-1000EC |
| Capacity | 300KN (30T) | 600KN (60T) | 1000KN (100T) |
| Testing force effective range | 6KN~300KN | 12KN~600KN | 20KN~1000KN |
| Force accuracy | ±1% |
| Displacement measurement resolution | 0.01mm |
| Deformation testing accuracy | ±0.5% |
The Max tensile space (Including stroke of piston) | 800mm | 800mm | 850mm |
The Max compression pace (Including stroke of piston) | 700mm | 700mm | 750mm |
| Flat sample clamping thickness | 0~15mm | 0~30mm | 0~40mm |
| Flat sample clamping width | 80mm | 80mm | 120mm |
| Clamping diameter of Round specimen (mm) | φ6~φ26 | φ13~φ40 | φ13~φ60 |
| Compression plate | 204mmX204mm | 204mmX204mm | 204mmX204mm |
Support roller space of bending test | 450mm | 450mm | 450mm |
| Width of support roller | 140mm | 140mm | 140mm |
| Piston stroke | 250mm | 250mm | 250mm |
| Diameter of pivot | 30mm | 40mm | 40mm |
| Clamping way | Hydraulic clamping |
| Amplifier | Programmable amplifier plug-in mounted inside the PC, automatic zero setting and calibrating |
| Dimension | Machine: 1100x650x2325 Oil source: 1140x700x930 | Machine: 1100x650x2325 Oil source: 1140x700x930 | Machine: 1225x750x2640 Oil source: 1140x700x930 |
| Weight | About 2800kg | About 3000kg | About 4500kg |
| Power supply | Three phases AC380V 50Hz or specified by user |
Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional
technical support and services.
We offer a comprehensive range of services to ensure that your
product is subjected to rigorous testing and quality control.
- We provide technical advice and assistance, from initial inquiry to
product delivery.
- We offer a variety of customized services to fit your specific
needs.
- We offer installation and set-up services.
- We offer training and maintenance services.
- We offer spare part and consumable supply services.
Our team of specialists is dedicated to providing the highest
quality technical support and services for ourr test machines. If
you have any questions or need assistance, please feel free contact
us.
We focus on providing excellent technical support and service to
our customers to ensure that your products undergo rigorous testing
and quality control. We offer a full range of services, from
initial technical advice and assistance to installation, setup,
training and repair services after delivery. We also offer a
variety of customized services to meet your specific needs and
ensure that your equipment can achieve the best performance. In
addition, we provide spare parts and consumables supply services to
ensure the continuous operation of your equipment. Our team of
experts is dedicated to providing the highest quality technical
support and service for our test machines to meet your various
needs. If you have any questions or need help, please feel free to
contact us and we will be happy to help you.
Packaging and Shipping:
Our test machine will be packed in appropriate cardboard boxes
and/or crates. The products will be shipped using standard shipping
methods such as air freight, sea freight, or ground transport. Any
special shipping requirements should be discussed with the supplier
prior to the purchase.
The customer is responsible for all import duties, taxes and/or
other fees associated with the goods. The supplier will provide all
necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as
you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no
stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we
can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also
customized machines according to
your request. Don’t hesitate to tell us your requirement, we will
try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries,
like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines,
Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we
can offer technique support and
part parts change, necessarily, our engineers may go to your place
for better service.
7. How about the packing for machine, is it safely protected during
transportation?
Our machine is packed by standard export wooden carton, it won’t be
damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. How to install and use the product?
The product is shipped with an operating instructions and video of
English version.
