    19" sunlight readable all weather rugged LCD monitor with multi PCAP touch HDMI input 9-36V DC input option

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD19CMT1IPHBS2
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    19" sunlight readable all weather rugged LCD monitor with multi PCAP touch HDMI input 9-36V DC input option

    19" sunlight readable all weather rugged LCD monitor with multi PCAP touch HDMI input 9-36V DC input option

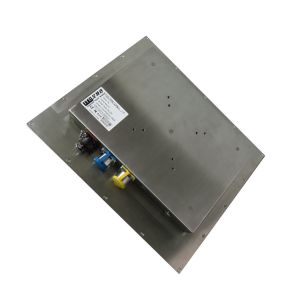

    ITD's ultra harsh-duty heavy industrial grade touch screen Fully Enclosed / Fully Sealed NEMA 4 (IP65) high brightness LCD displays are an ideal HMI solution complete with standard resistive touch or PCAP touch. With its lightweight yet rugged construction and either pre-cabled or bulkhead connectors, these models are easily mounted on walls, stands, arms or other industrial equipment. With optional brackets, it conforms to VESA mounting standards. These small footprint fully sealed LCDs are ideal in a variety of harsh environment manufacturing facilities.


    FEATURES

    -19" Very Bright Active Matrix Sunlight Readable TFT Display, 1500 nits (cd/m2)

    -Optical Bonding for Better Sunlight Readability and UV protecting Optional

    -High-Luminance Solid-State LED-enhanced Backlighting

    -Waterproof Bottom-Exit Connectors

    -Fully Enclosed / Fully Sealed, Gasket Sealed NEMA 4 (IP65) Stainless Steel or Aluminum Enclosure

    -Resistive Touch Screen Standard (other technologies available)

    -Energy Efficient, Low Power Consumption

    -High Environmental Performance and Reliability

    -Anti-Reflective Protective Window

    -Wide Operational Temperature Range, -10°C to +60°C (optional extended temperature ranges available)


    Applications for Rugged Touchscreen LCD Monitors

    -Food processing plant automation control

    -Kitchen application

    -Chemical plant or laboratory

    -Liquor Factory

    -Clinical area / pharmaceutical / medical

    -Operating and monitoring in Oil, Gas & Energy industry

    -Industrial automation control in slaughtering house

    -Railway/Transportation


    Full IP65/IP66 High Brightness Touchscreen Monitor


    Model NameITD19CMG1IPHBA1
    IP RatingFull IP65/IP66(IP67 optional)

    LCD Panel


    Screen Diagonal (Inch/cm)19”
    Display Active Screen Size (mm)376.32(H) ×301.06(V)
    Aspect Ratio4:3
    Physical Resolution1280×1024
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)1000 cd/m²
    Contrast Ratio1000:1
    View Angels85/85/80/80
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel


    Touch OptionsResistive, PCAP
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input1 × VGA
    N/A
    1 × HDMI(Optional)
    AudioN/A
    Touch Connector1 × USB(Optional)
    Power Connector1 × DC2.0

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorN/A
    Power InputDC 12V
    Power Consumption35W

    Order Information


    19”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum HousingITD19CMT1IPHBA1
    19”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum HousingITD19CMT5IPHBA1
    19”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel HousingITD19CMT1IPHBS1
    19”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel HousingITD19CMT5IPHBS1
    19”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum HousingITD19CMG1IPHBA1
    19”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel HousingITD19CMG1IPHBS1
