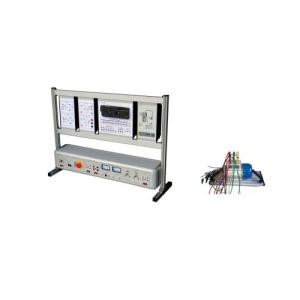

ZE3108 S7 200 Didactic PLC Learning Kit / ZE3108 Electronic
Training Equipment
1 Product overview
1.1 Profile
PLC is the modern technology in industrial field, this trainer
include Siemens S7-200 PLC training
modules, power box, workbench, training student’s hand on practice
ability, programming ability.
1.2 Character
(1) Training workbench use industrial aluminum column structure
frame, it include meter box and power
box to test and measure technical parameter, it is easy to use and
it is not easy to be broken.
(2) Equipped with components, students can make combination, and
finish many training contents.
(3) Training workbench has high safety system.
(4) 4 Wheel at the bottom of workbench, 2 with locker, it is easy
to move and fix.
(5) With cabinet at bottom, with locker in cabinet, students can
put tools inside.
(6) The structure is flexible, can be disassembly and assembly
easily.
2 Technical parameter
(1) Input power: single phase, three wires, 220V±10% 50Hz
(2) Dimension: 1200mm×700mm×1780mm
(3) Whole capacity:＜2.0KVA
(4) Weight: ＜200kg
(5) Work environment:<85% humidity
3 Product consist of
3.1 Power control panel
Power control panel use aluminum structure metal panel, all close
type boxes structure
3.2 Training workbench
Training workbench use aluminum structure. There are universal 4
wheels at the bottom of workbench, there are 2 breakers on wheel.
The trainer can be moved or stop convenient . The workbench panel
thick is 25mm high density substrate , there is high temperature
high pressure anti-fire treatment process. It equip with three
guide rail type drawer, 2 push and plug cabinet. The structure is
sound and reliable, outlook is beautiful.
3.3 Power control panel
(1) Single phase, three wire power input, it has been tested by
leakage breaker control, it has emergency stop button, you can cut
off electricity when emergency.
(2) Control panel has two point type voltage meter, one current
meter, one power meter, one non power meter.
(3) It equipped with indicator, Europe power plug output, safety
output sockets.
(4) Inner AC 220V current output, DC 220V wound power, DC 0-220V
continuous adjustable DC armature power, with short circuit
protection function.
3.4 Component included
1. This training device configuration equipment with 17
experimental
hanging box:
(1) Sky tower light simulation training
(2) Traffic light test simulation training
(3) Various liquid mixing simulation training
(4) Water level simulation training towers
(5) Mail sorting simulation training
(6) Motor control simulation training
(7) Responder simulation training
(8) Automatic feeding loading simulation training
(9) Automatic packing line simulation training
(10) Machining center simulation training
(11) Feed car simulation training
(12) Robot simulation training
(13) Elevator control test simulation training
(14) Vending machine simulation training
(15) Temperature automatic control
(16) With English user manual.
(17) Multi meter
Arrange delivery within 45 days upon receipt of payment.

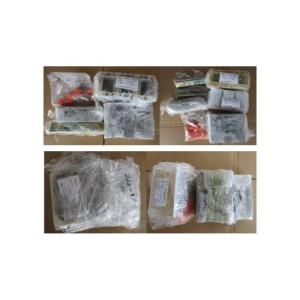

Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical
teaching equipment, which has been widely applied in Engineering
Universities, Polytechnics, Technical Institute, Vocational Schools
as well as Industry workforce Development Programs and Training
Center. Our products allow students to learn and experiment through
valuable hands-on experience, and the technology covered by our
training equipment provides knowledge, experiments and didactic
skills development that are of critical importance to today´s and
tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM
service, buyer label service. With professional engineers team and
sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client
requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training
centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items
|
