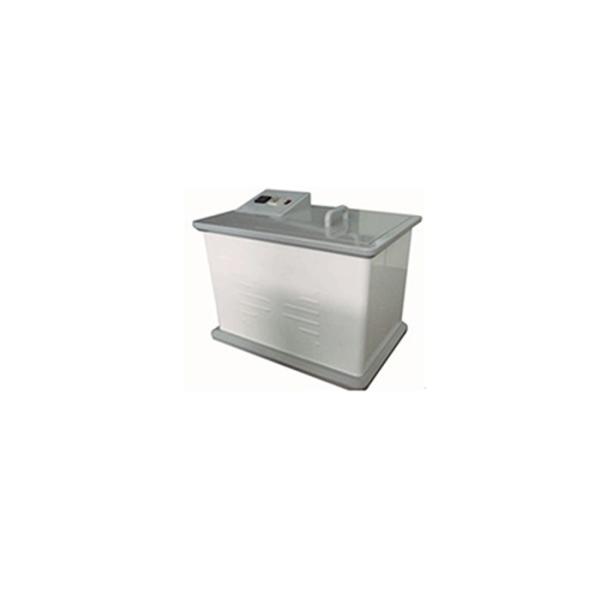

ZP6113 Chemical Paint Developing Machine PCB Lab Equipment Teaching
Equipment
1. Introduction
This develop machine is mini laboratory use machine. It is for
copper plate or print laboratory quickly develop sample and
manufacture. Inner with anti-etching pump, make etching liquid
double sides spray to sample two sides, etching PCB sensitive
layer. Inner immersion program heater, heating developing liquid to
develop temperature. With clock preset develop time.
★1. Take imported spray sprinkler 8 units. Spray is uniform.
★2. Spray pressure: antiseptic high-pressure magnetic pump, with
filter set.
★3. Wire diameter:0.1mm,
4. Transparent flip function, it is easy to observe.
5. Max sample dimenstion:400×350mm
6. Sample develop time:0.1-5 minutes adjustable.
★7. Heat temperature is adjustable, heater power: 500W,220V,50Hz,
single phase.
8. With timer function, timer can be preset time as hour, minute,
second.
9. Inner dimension:450×400×350mm
10. Dimension:600×430×500mm
11. Net weight:15KG
12. With equipment desk 1 unit. Dimension:600×500×500mm, use anti
corrosion PVC material, the below is cabinet structure, it can put
tools, spare parts etc.
