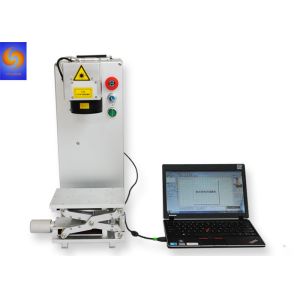

50W Customized Portable Laser Marking Machine 20-100KHz Easy Installation

    Buy cheap 50W Customized Portable Laser Marking Machine 20-100KHz Easy Installation from wholesalers

    Buy cheap 50W Customized Portable Laser Marking Machine 20-100KHz Easy Installation from wholesalers
    • Buy cheap 50W Customized Portable Laser Marking Machine 20-100KHz Easy Installation from wholesalers
    • Buy cheap 50W Customized Portable Laser Marking Machine 20-100KHz Easy Installation from wholesalers

    50W Customized Portable Laser Marking Machine 20-100KHz Easy Installation

    Ask Lasest Price
    Brand Name : tylaser
    Model Number : MH-F50D
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 100 Set/Sets per Month Portable Handheld Metal Laser Marking Machine
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    50W Customized Portable Laser Marking Machine 20-100KHz Easy Installation


    50W Customized Portable Mini Fiber Laser Marking Machine For Jewellery


    Description


    Fiber lasers belong to the solid state laser group. They generate a laser beam by means of the so-called seed laser and amplify it in specially designed glass fibers,which are supplied with energy via pump diodes. With a wavelength of 1064nm,fiber lasers produce an extremely small focal diameter. Fiber lasers are optimally suited for metal marking by way of annealingfor metal engraving and for high-contrast platic markings. Fiber lasers are generally maintenance-free and feature a long zervice life of at least 25000 laser hours. Suited for the following materials:Metals,coated metals,plastic


    Application


    Materials:Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

    Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)


    Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.


    Advantages


    1) Compact design and fast installation.


    2) Easy to be integrated at any position of the production line.


    3) More further environmental protection and energy saving.


    4) Un-contact processing, more environmental protection, low er power, fast laser marked and cost economy.


    5) Easy to use and Excellent compatibility.


    6) Simplicity of operation, easy to use, powerful anti-jamming performance, enough memory, multiply input and output interface.


    use with automatical anti-counterfeit and anti-disorder system.


    7) Adopt the best laser source in China, more safer and faster.


    Main Parts Introduction of Portable Laser Marking Machine


    1) Fiber Laser Source,

    2) Scan Head,

    3) F-theta Lens,

    4) Marking Software,

    5) Computer

    6) Rotary Device (for rotary marking)


    specification


    Model
    MH-P50
    laser power
    50W
    The machine power consumption
    1000W
    Min marking character
    0.02mm
    marking depth
    0.01-0.5mm
    wave length
    1064nm
    marking range
    110X110MM, 145X145MM 200X200MM(optional)
    marking speed
    ≤12000mm/s
    minimum line width
    0.02mm
    frequency
    20-100KHz
    Working Accuracy
    0.002mm
    power supply
    AC220V/50Hz
    Cooling Mode
    Air Cooling

    Our service


    Before sale


    Our salesman will try to know more about your demands , including the max working size , main processing materials and the thickness , so we will offer you suit machine.

    During production


    We will send the production the machine pictures to customer in time , customer can know more the detailed machine parts.

    Before shipping


    The machine parts will be installed and tested by our professional technician , send the test video according to customer’s processing materials for customer confirmations.

    After shipping


    We will check when the machine arrive your sea port or the approximate arrival date , so that the customer can know the arrival date and to prepare to pick the machine up.

    Teaching


    The English manual and operating video will be sent to customers with the machine together , it will help customer to operate the machine . If have any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

    Our warranty


    We guarantee the machine for 1 years,some machine parts ( quality problems ) can be free charge to replace it within warranty.
