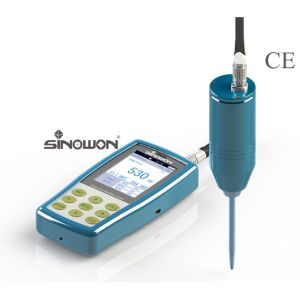

    Long Probe Ultrasonic Portable Hardness Tester For Reliable Hand Held HardnessTesting

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : SU300C
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 50pcs
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Long Probe Ultrasonic Portable Hardness Tester For Reliable Hand Held HardnessTesting

    Long Probe Ultrasonic Hardness Tester For reliable Hand-held HardnessTesting

    --------------------Gear Hardness Tester, Deep Hole Hardness Tester---------------------------


    Our manual measurement probes are available with test forces 10N, 20N. They are ideal for general, hand-held testing procedures in the fields of production and maintenance.


    Manual measurement probes have been designed for daily use and will help you quickly achieve reliable results when manually measuring without guidance aids or stands.


    Technical Specifications:


    NameExtended Manual Probe Ultrasonic Hardness Tester
    ModelSU-330C
    Code#882-141C
    ProbeStandard 10N:HP-1C;Optional 20N:HP-2C
    Range(DIN)

    HRC:20-68;HRB:55-100;HRA:37-85;

    HBS:100-500;HV:100-1500;Mpa:255-2180N/mm


    Accuracy(%)

    Scale﹤250HV250~500HV500~800HV﹥800HV
    HV0.16789
    HV0.36789
    HV0.85567
    HV15567
    HV55555
    HV105555
    Scales(HV);(HRA,HRB,HRC);(HB);(HS)
    Screen3.2“ Color LCD
    Data Display

    Loading force,Testing-times, Testing result, Average,

    Maximum,Minimum,Deviation and Conversion scale.

    LanguageChinese, English, German, Portugese, Turkish
    Data OutputRS232 Hyper Terminal/Bluetooth Printer
    Data StorageTo save 1000-groups of measuring data and 20-groups of calibration data
    Word InputLetters and numerals
    Working EnvironmentTemperature: -10°C to 50°C ; Humidity :30%-80% R.H.
    Battery VoltageRechargeable lithium battery ; Voltage :4.2V, 4800mAh
    Recharger VoltageAC220V/50Hz, 110V/60Hz
    Main unit Dimension and WeightMain unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
    Packing Dimension and WeightPacking Dimension :320 x 430 x 155mm (L x W x H) ; Packing Weight (Standard Delivery):4.3Kg

    Standard Delivery:


    Product NameCode #Product NameCode #Product NameCode #
    Instrument Main Body882-141C10N Manual Extended Probe882-321CAnti Vibration Case882-901
    Standard Rockwell Block882-641Probe Cable882-801Screw882-951
    USB Recharger882-851COM Cable882-810Operation ManualSU-300H
    Qualification CertificateSU-300HPacking ListSU-300HWarranty CardSU-300H
