Quick Details:
1, Pixel Pitch: 10mm, SMD LEDs.
2, Full colors: 281trillions.
3, Wide viewing angle: 160°/ 160°.
4, Input Voltage: AC110V/220V, 50/60Hz.
5, Standard cabinet size: 960×960x150mm, weight: 53kg.
6, Recommended minimum viewing distance: 10m.
Description:
LED display,also called led screen, led video wall, or led sign,
with its unique advantages,has gradually replaced the traditional
billboards, light boxes,etc. LED display advertising has become a
new force in the media industry.
Traditional advertising can only show pictures, But LED display/led
video wall/led screen can perfect combine text, pictures, video,
and sound with high resolution, high brightness and full color! LED
display Advertising screen can easily attract the attention of
pedestrians, and also are easy to remember, which can generate
greater advertising effectiveness.

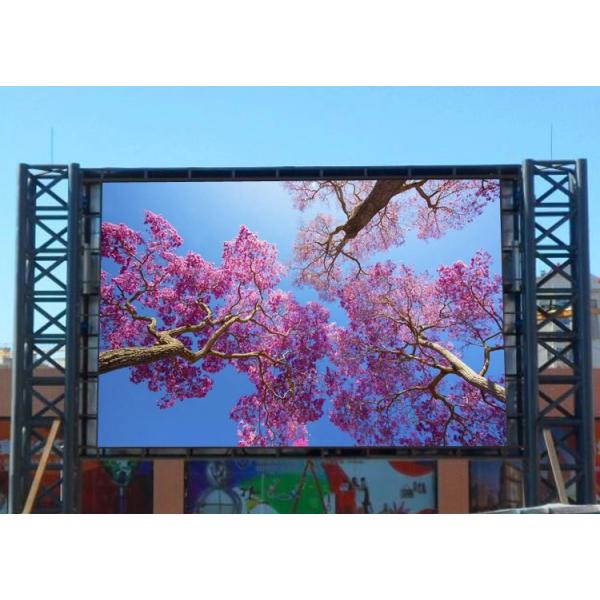

TBC Outdoor LED Billboards include permanent installation outdoor
digital led display, the pixel various from 4mm, 5mm, 6mm, 6.77mm,
10mm, 12mm, 16mm.
Application:
TBC fixed installation outdoor led screens are widely used for
commercial advertising or media broadcasting in airport, station,
pole, square, stadium, public places and so on.
Features:
1, High brightness from 6,000nits to 9,000nits, visible from every
direction even face to direct sunshine.
2, Wide viewing angle for broader reach, up to 160° horizontally
and 160° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and
assemble job.
4, High IP rating, IP65, durable for any weather condition.
5, Meanwell brand power supply, saving energy and high efficiency.
6, High contrast ratio 4,000:1, beautiful natural picture.
Advantages:
1, Frist-class LED chip, high quality led panel.
2, Ghosting free.
3, High fresh rate up to 2,000Hz.
Specifications:
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 53 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 10 |
| Pixel matrix per cabinet | | 96x96 |
| Pixels per cabinet | | 9216 |
| Lines per meter | | 100 |
| Pixels per sq. meter | | 10000 |
| LEDs per sq. meter | | 10000 |
| Recommended minimum viewing distance | m | 10 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 1000/350 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
