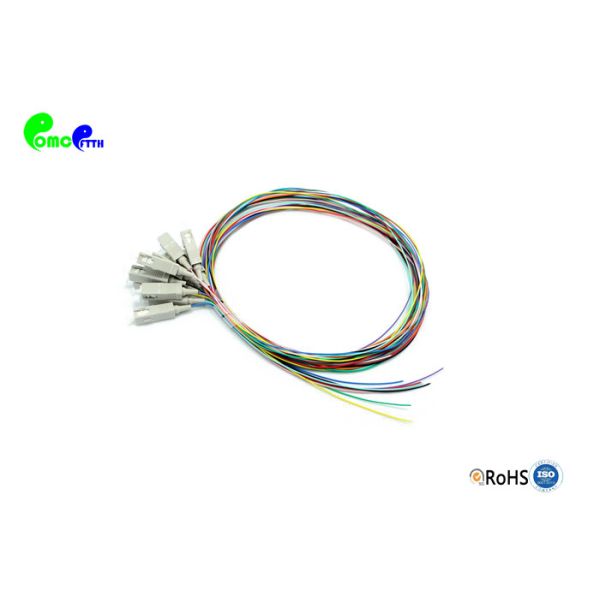

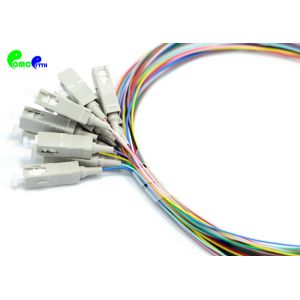

12pcs 12 Colors SC PC Optical Fiber Pigtail set OM2 50 / 125μm
0.9mm 2M LSZH Loose buffer easy to strip LSZH
Pigtails are used for splice applications when terminating outside
plant cable. It’s consists of a connector and a special length.
It’s consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets
Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, and E2000etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
The cable size could be 0.25, 0.9,
There are 12 colors for your option.
Both 250um and 900um is same colored, easy to identify and make
right splice.
Tight buffer, semi-tight buffer. Loose buffer are available
Products info
| Fiber count | 12 | Fiber Mode | 50/125μm |
| Connector Type1 | SC/PC | Connector Type2 | Unterminated |
| Fiber Mode | MM | Breakout length | 0.5m |
| Wavelength | 850/1310nm | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥35dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Length tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
OMC also provides a full set of OEM services, such as fiber
connector, length, color, fiber grade, specification, material,
package etc.
12 Colors
Application
Packaging
This easily taken and well-protected fiber optical cable package
has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on
goods Qty . Packing can be customized.
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and
allows 10 Gig / second link distances of up to 550 Meters (compared
to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that
of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000
MHz.km.
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
