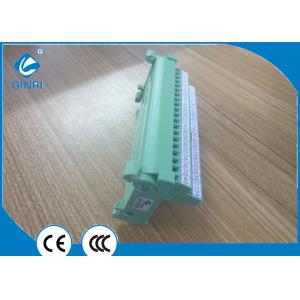

IDC Interface Breakout Module PLC 146mm Terminal Blocks For CNC
Machine
The insulator in the terminal block not only plays the role of
insulation. Under normal circumstances, it also provides
corresponding protection and centering for the protruding contacts.
It also has positioning and installation, as well as a fixed lock
on the device. The main function. If there is a poor fixing of the
terminal station, it will affect the instantaneous power failure
due to reliable electrolysis, and if it is serious, it will cause
the entire product to disintegrate. Disassembly mainly refers to
the terminal table because of the straight line in the state of
engagement, due to factors such as material, process and design,
resulting in its unreliability in the structure, prompting the
socket and plug between the jack and the pin does not occur The
normal separation severely affects the control system, causing
serious consequences such as interruptions in the transmission of
power and signal control. Because of unreasonable design, errors in
material selection, improper molding process, improper heat
treatment, assembly, molds, and welding processes, the overall
quality is relatively poor, and assembly is not in place. The
situation will have a fixed effect of serious effects..
The quality of the terminal depends on the following three factors:
design, material selection and processing technology. When choosing
the terminal, we must pay attention to carefully distinguish:
First, look at the appearance: a good product is like a
craftsmanship, it seems to give people a pleasant feeling;
Secondly, the material is better: Insulation parts should be
fire-retardant engineering plastics, conductive The material must
not be iron with copper; the most critical is the processing of the
thread. If the thread is not machined properly, the torque of the
connecting wire will be lost if the torque does not reach the
standard. The easiest test method is: visual inspection (looking at
the appearance); weighting (with or without cutting); burning
(flame retardant); test torque.
♦ Features
-- Support most of PLC output interface
-- Standard DIN rain mounted
-- High quality connectors with excellent stability
-- Models available with Phillips screw, slotted screw
-- Greatly savings in wiring and wiring Work
-- Easy for inspection and maintenance
-- Compact slim 49mm width
♦ Typical Applications
• Micro-controller • PLC control • Servo System
• Electro-magnetic valve • DC Motors • CNC machine
• Home intelligent control
♦ Technical data
| Model | JR-50TBC |
| Connector type | IDC(MIL) |
| I/O poles | 50 |
| Wiring method | Euro terminal (slotted screws) *Japanese terminal (Phillips screws) can be customized |
| Rated current | 1A |
| Rated voltage | DC24V |
| Insuration resistance | 100MΩ min. (at 500VDC) |
| Dielectric strength | 500VAC 1min |
| Ambient operating temperature | -20℃~+55℃ |
| Applicable wires | AWG 22-16(0.3~1.25mm2),6~7mm |
| Suitable Uses | Panasonic FPΣ PLC |
| Dimensions(LxWxH) | 49×46mm |
| Mounting | DIN rail |
