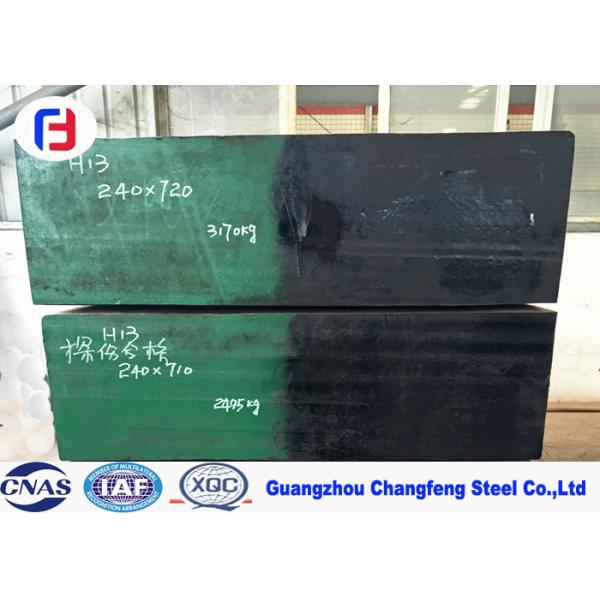

Good Thermal Stability AISI H13 Hot Work Tool Steel For Forging die
Main introduction:
Hot work Tool Steel H13 / 1.2344 is a chromium, molybdenum,
vanadium high-performance long-life general type alloy hot work
mould & die steel produced by Hongsheng Heavy Industry and Shanghai
University. It has high toughness, high tropism, high thermal
stability and high resistance to cold and heat fatigue performance.
Keywords:
AISI H13, DIN 1.2344, JIS SKD61, GB 4Cr5MoSiV1
Chemical composition(%):
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
Avaiiable size(mm):
| Flat Bar Size(mm) | Round bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 16-260 | 205-610 | 3000-6000 | 16-200 | 300-6000 |
Surface treatment:
| Steel plate | Black / Milling / Machined |
| Round bar | Black / Grinding / Polished / Peeled / Turned |
About hot work tool steel H13:
Recommend heat treatment:
| Quenching ℃ | Tempering ℃/HRC |
| 1020-1050℃ | 100 | 200 | 300 | 400 | 500 | 550 | 600 | 650 | 700 |
| Air/oil or slat bath | 52 | 52 | 52 | 54 | 54 | 54 | 50 | 42 | 32 |
Application:
Mainly used in the manufacture of die-casting molds, hot forging
molds, hot extrusion molds, high-strength plastic molds and other
high-performance long life required hot molds, it can replace
imported hot die steel Superior AISI H13, WNr. 1.2344, ASSAB 8407,
SKD31, etc.
Feature:
1, Low phosphorus, sulfur and residual elements;
2, Patented high temperature diffusion and ultra-fine heat
treatment, excellent strength and toughness;
3, Excellent resistance to temper softening and thermal fatigue;
4, Excellent heat treatment dimensional stability and plating
performance.
Technical service:
Die vacuum heat treatment and die surface
treatment(N-O,C-N,carburize and nitridation surface treatment).
Delivery condition:
EF, or ESR, Hot rolled or forged, black surface or milling.
Hardness: annealed to HB≤229.
Terms of payment:
30% deposit T/T and the balance by L/C at sight, or T/T.
About our warehouse:
About GUANGZHOU CHANGFENG STEEL CO., LTD
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel
company, which specialized in exporting mould steel products based
in China. With more than 20 years experience in special steel
industry, our main products are Plastic Mould Steel, Hot Work Mould
Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel,
Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close
cooperation with many Chinese first class special steel
enterprises, including Baosteel Group, Dongbei Special Steel,
Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng
Special Steel, Daye Special Steel. We have thousand tons of stock
materials in our own factory and also can provide processing
services to customers.
We are full of export experience for many years, the product covers
America, Germany, France, Italy, Turkey, Singapore, Thailand,
Malaysia, Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete
quality management and export service system. We have a group of
experienced and competent elites and is capable of offering the
best service to clients.
Our company equips with large-sized Vertical saw machines,
Horizontal saw machines, Milling machines, Grinding machines and
other advanced equipments to provide customers with cutting and
other processing services.
All the products should be inspected the metallographic analysis,
hardness, ultrasonic flaw detection and other strict inspection
processes, which meet the standards of DIN, AISI, JIS and GB to
ensure their function and quality.
