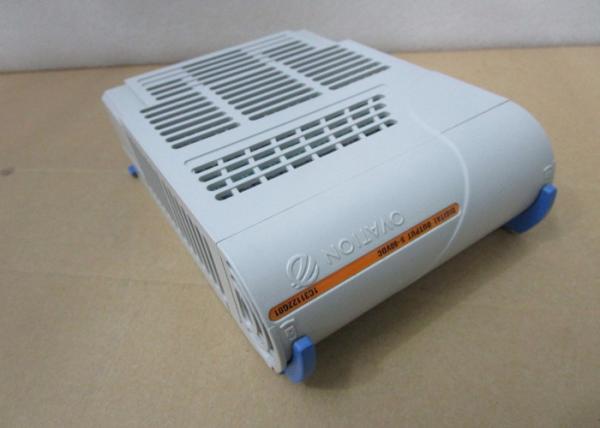

Emerson Westinghouse Ovation Digital I/O Module 1C31122G01 Output
Electronic Module
NEW IN STOCK
Quick detail:
1C31122G01 Ovation Module Digital Output Electronic Module 5-60VDC
Features
▪ Modular, plug-in components support long-term process reliability
▪ Modules are installed and configured quickly and easily with
single-point DIN rail fastening
▪ Built-in connectors eliminate power and communications wiring
▪ Electronic ID identifies module type, group, serial number and
revision
▪ Fewer module styles reduce spare parts inventory costs
▪ Redundant power supplies deliver system reliability
▪ “Hot swapping” streamlines system maintenance
▪ Standardized status indicators offer color-coded diagnostic
messages
▪ Remote Ovation I/O provides a flexible, cost-effective means to
distribute I/O modules to strategic locations throughout the plant.
Specifications
Ovation Local I/O
| Ovation Local I/O Specifications |
| Max branches per controller | 16 branches |
Max I/O modules per branch | 8 modules |
Max I/O modules per controller | 128 modules |
| Max local I/O bus length | 20m (60ft) |
Ovation Remote I/O
| Remote I/O Specifications |
| Max. remote nodes | 8 nodes |
| Max. I/O modules per node | 64 (8 branches with 8 modules for each branch) |
| Max. I/O modules per controller | 512 modules |
| Remote I/O bus configuration | 10 BASE-FL Ethernet physical layer with a proprietary protocol |
| Remote I/O cycle time | <100 microseconds (no repeaters) |
| Standard remote communications media | Fiber optic |
| Maximum cable length for 850 nm fiber-optic media | 4 km. Distances of 6 km can be achieved with repeaters (up to two
repeaters) |
Parts of Westinghouse Ovation Power Supply Modules
| Part Number | Description |
| 1B30023H01 | ASSY, I/O BUS TERMINATOR-INTERNAL GUIDES |
| 1B30035H01 | BASE ASSY, 2 SLOT STANDARD I/O |
| 1C31116G04 | PMOD ASSY, ANALOG INPUT (VOLTAGE W/ TEMP SENSOR) 8CH |
| 1C31122G01 | EMOD ASSY, DIGITAL OUTPUT 16CH (5-60VDC) |
| 1C31166G02 | EMOD ASSY, LINK CONTROLLER (R1120 CPU) |
| 1C31179G02 | EMOD ASSY, MEDIA ATTACHMENT UNIT (4 CHAN) |
| 1C31181G02 | PMOD ASSY, MEDIA ATTACHMENT UNIT (4CH-850NM) |
| 1C31194G01 | EMOD ASSY, VALVE POSITIONER (1KHZ)-LEGACY |
| 1C31194G03 | EMOD ASSY, VALVE POSITIONER (G03) |
| 1C31194G04 | EMOD ASSY, VALVE POSITIONER (G04) |
| 1C31197G05 | PMOD ASSY, VALVE POSITIONER |
| 1C31203G01 | EMOD ASSY, REMOTE NODE CONTROLLER |
| 1C31204G01 | PMOD ASSY, REMOTE NODE CONTROLLER (850NM FIBER PORT) |
| 1C31219G01 | MODULE ASSY, RELAY OUTPUT 16CH |
| 1C31224G01 | EMOD ASSY, ANALOG INPUT 8CH 14BIT (4-20MA CURRENT) |
| 1C31227G01 | PMOD ASSY, ANALOG INPUT (CURRENT) 8CH |
| 1C31232G03 | EMOD ASSY, DIGITAL INPUT 16CH |
| 1C31233G04 | EMOD ASSY, SEQUENCE OF EVENTS INPUT 16CH |
| 1C31234G01 | EMOD ASSY, CONTACT INPUT W/ ONBOARD 48V WETTING 16CH |
| 1C31238H01 | PMOD CAVITY INSERT, COMPACT DIGITAL INPUT / EVENTS INPUT / CONTACT |
| 1X00030H01 | FUSE MICRO 0.062A 125V VERY FAST ACTING RADIAL PLUG |
| 1X00030H02 | FUSE MICRO 0.5A 125V VERY FAST ACTING RADIAL PLUG |
| 1X00030H04 | FUSE MICRO 0.05A 125V VERY FAST ACTING RADIAL PLUG |
| 1X00416H01 | Buy) POWER SUPPLY, AC INPUT,24V 300W & 25V 500W OUT DIN |
| 1X00529H23 | MEDIA CONVERTER, MM, ST, 2KM, HW:REV3; FW:2.0 |
| 1X00569H01 | PMOD CAVITY INSERT, BLANK (W/ SILKSCREENED PART # ON BOTTOM) |
Others:
| 1X00707H06 | 1X00030H01 | 1X00030H01 | 1C31116G04 |
| 1X00781H01L | 1X00030H02 | 1X00030H02 | 1C31122G01 |
| 1X00884H01 | 1X00030H04 | 1X00030H04 | 1C31166G02 |
| 4A00106H18 | 1X00416H01 | 1X00416H01 | 1C31179G02 |
| 4A00106H19 | 1X00529H23 | 1X00529H23 | 1C31181G02 |
| 4A00120H01 | 1X00569H01 | 1X00569H01 | 1C31194G01 |
| 5A23363H01 | 1X00707H06 | 1X00707H06 | 1C31194G03 |
| 5A23363H02 | 1X00781H01L | 1X00781H01L | 1C31194G04 |
| 5X00062G01 | 1X00884H01 | 1X00884H01 | 1C31197G05 |
| 5X00070G04 | 4A00106H18 | 5A23363H01 | 1C31203G01 |
| 5X00106G01 | 4A00106H19 | 5X00062G01 | 1C31204G01 |
| 5X00109G01 | 4A00120H01 | 5X00070G04 | 1C31219G01 |
| 5X00109G02 | 5A23363H01 | 5X00106G01 | 1C31224G01 |
| 5X00119G01 | 5A23363H02 | 5X00109G01 | 1C31227G01 |
| 5X00167G01 | 5X00062G01 | 5X00109G02 | 1C31232G03 |
| 5X00208G01 | 5X00070G04 | 5X00119G01 | 1C31238H01 |
| 5X00226G03 | 5X00106G01 | 5X00167G01 | 1C31116G04 |
| 5X00228G01 | 5X00109G01 | 5X00208G01 | 1C31122G01 |
| 5X00357G05 | 5X00109G02 | 5X00226G03 | 1C31166G02 |
| 5X00419G02 | 5X00119G01 | 5X00228G01 | 1C31179G02 |
| 5X00481G01 | 5X00167G01 | 5X00357G05 | 1C31181G02 |
| 5X00658G01 | 5X00208G01 | 5X00419G02 | 1C31194G01 |
| 5X00717G01 | 5X00226G03 | 5X00481G01 | 1C31194G03 |
| 5X00790G01 | 5X00228G01 | 5X00658G01 | 1C31194G04 |
| 1B30023H01 | 5X00357G05 | 5X00717G01 | 1C31233G04 |
| 1B30035H01 | 5X00419G02 | 5X00790G01 | 1C31197G05 |
| 4A00106H18 | 5X00481G01 | 1C31224G01 | 1C31203G01 |
| 4A00106H19 | 5X00658G01 | 1C31227G01 | 1C31204G01 |
| 4A00120H01 | 5X00717G01 | 1C31232G03 | 1C31219G01 |
| 5A23363H02 | 5X00790G01 | 1C31233G04 | 1C31234G01 |
| 1B30035H01 | 1B30023H01 | 1C31234G01 | 1C31238H01 |
Packaging & Delivery
Packaging Details
Cartons
Delivery Time
Whithin 3-5 days
