60Hz 10.1inch 350cd/m² Small LCD Panel Resolution
1280*800(N101ICG-L21)
- Introduction of the Original 10.1inch Small LCD Panel N101ICG-L21
It is 10.1inch innolux Small LCD PANEL ;view angle is 85/85/85/85
,brightness is 350cd/m²,resoultion is 1280*800 ,a-si TFT LCD.
backlight Work time last 12khours; the Operating and Temp.: -10~ 60
°C ; storage Temp is -20 ~ 70 °C; It is used for PDA and Tablet .
| Manufacturer | INNOLUX | Model Namel | N101ICG-L11 |
| Screen Size | 10.1INCH | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 1280(RGB)×800 , XGA | Response Time | 14/11 Typ.)(Tr/Td) |
| Active Area(mm) | 216.96(H)×135.6(V) mm | Arrangement | RGB Vertical Stripe |
| Bezel Area(mm) | 219.31(H)×138.25(V) mm | Outline(mm) | 227.42(H)×147.69(V) ×4.85(D) mm |
| Luminance | 350 cd/m² (Typ.) | Treatment | Antiglare, Hard coating (3H) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Contrast Ratio | 800:1 (Typ.) (TM) |
| Good View at | - | Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K 50% (CIE1931) | Signal Type | LVDS (1 ch, 6-bit) , 40 pins , Connector |
| Frame Rate | 60Hz | Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temperature: -10~ 60°C ; Storage Temperature: -20 ~ 70°C | Backlight | WLED, 12K hours , With LED Driver |
| Used for | PDA ,Tablet | Touch screen | without |

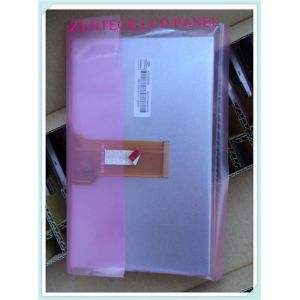

Pics of the Original 10.1inch Innolux small lcd panel N101ICG-L21
1. Have our own stock ,kinds of panels . Fast reply RFQ immediately
.
2. Ship parts from shenzhen or HK .
3. Safe transportation: Fast and safe transportation that ensures
safety of your merchandise.
4. Technology advancement: Professional field applicatoin engineers
(FAE) act as your exclusive technical consultant.
5. FQA :
PAYMENT : T/T ,Western union
Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.
Delivery time : 1-3 working days upon payment.
- Quality Assurance of Display Panel
Products can replace free within 10 days after customers
Delivered-Signed if it cannot use due to the quality problems, in
the precondition of non-artificial damage. We pay for the freight
only for the replacement delivery.
The warranty time is 3-12 months. Within Warranty period, products
under serviceable,we will offer the repair service for
free,customers afford the cost of the parts. Customers afford the
freight.
Even if within the warranty period, if the following occurs, the
repair service is not available.
1. The malfunction and damaged caused by incorrect use, the
unauthorized repairs and alteration.
2. The damage caused by fire, flood, abnormal voltage, other
natural disasters and secondary product damage.
3. The product malfunction caused by the fall and transportation
failures after purchase.
4. The malfunction and damaged caused by the other barriers
(man-made factors or external device).
Any problems in the after-sales service, please contact our agents
or us directly.
