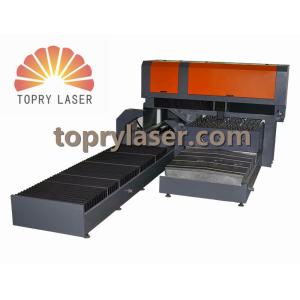

Rotary and Flat Integrated Die Board Laser Cutting Machine

    Buy cheap Rotary and Flat Integrated Die Board Laser Cutting Machine from wholesalers

    Buy cheap Rotary and Flat Integrated Die Board Laser Cutting Machine from wholesalers
    • Buy cheap Rotary and Flat Integrated Die Board Laser Cutting Machine from wholesalers

    Rotary and Flat Integrated Die Board Laser Cutting Machine

    Ask Lasest Price
    Brand Name : Topry
    Model Number : FR1500
    Certification : CE
    Price : Negotiable
    Delivery Time : 30 Working Days
    Payment Terms : TT
    • Product Details
    • Company Profile

    Rotary and Flat Integrated Die Board Laser Cutting Machine

    1000W~1500W Rotary And Flat Integrated Die Board Laser Cutting Machine


    Brief Introduction


    The machine is with gantry structure , and comined the mixed optical path and compact machine frame structure, which occupies a limited area. Equipped with Germany PA numerical control .

    Closed optical path, the laser head is equipped with high sensitive tracking system which can ensure consistent cutting slit.


    TECHNICIAL SPECIFICATION


    Effective working process range1200*1800 / 1200*2400 mm
    X axis range1200mm
    Y axis range1800 / 2400mm
    Z axis stroke80mm
    X/Y location accuracy±0.03 mm
    X/Y repeat positioning accuracy±0.01 mm
    X/Y moving speed15m/min
    Machine platform positioning speed50m/min
    Working platform maximum load300kg
    Cutting thickness1-30mm
    Cutting speed75~220m/h
    Working voltage380V, 50Hz

    Rotary Cutting Parameters

    Cutting diameter200~800mm
    Cutting length2400~3000mm
    Laser power1000~1500W
    Cutting methodSingle head with auto focusing system
    Positioning accuracy±0.03 mm
    Repeat positioning accuracy±0.01 mm
    Cutting slit width0.71,1.05,1.42
    Cutting speed60~120m/h
    Main partsservo motor,rack
    HMIindependent
    Control softwarePA
    Accessary softwareIncluding the bridge automatically generating system
