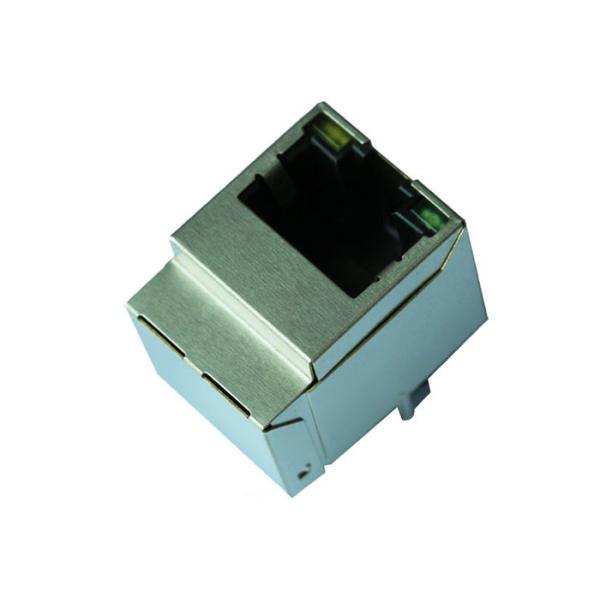

7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

    Buy cheap 7499010126A 1X1 Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL from wholesalers

    Buy cheap 7499010126A 1X1 Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL from wholesalers
    • Buy cheap 7499010126A 1X1 Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL from wholesalers

    7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : 7499010126A
    Certification : UL,ROHS,Reach,ISO
    Price : $0.09-$1.85
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 4000K/month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

    7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL
    1. LPJD5011BENL Vertical Rj45 Jack
    2. 1X1 Vertical Type 7499010126A
    3. Through hole RJ45 modular jack
    4. 7499010126A PIN TO PIN LPJD5011BENL
    5. 7499010126A = MIC24611-5117T-LF3

    Description:


    Application-LANETHERNET(NON POE)
    AutomDXYES
    Bst CircuitYES
    Configuration RXT,C
    Configuration TXT,C
    Contact Mating Area PlatingGOLD 6u"/15u"/30u"
    Cores Per Port4
    DiodesNO DIODES
    LED OptionGREEN/YELLOW
    LatchUP/DOWN
    Number of PortsSINGLE PORT With VERTICAL
    PCBFR4
    PCB Mount AngleSIDE ENTRY
    PCB Retaining PostT POST
    Pin TypeTHT SOLDER
    RoHS CompliantYES-RoHS-5 With LEAD IN SOLDER EXEMPTION
    SearchYES
    Shield EMI TabsWith OR WithOUT
    Speed10/100 BASE-T
    Temperature-40 TO 85°C
    Turns Ratio RX1CT:1
    Turns Ratio TX1CT:1
    Applications:
    Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
    Competitive Advantage:
    16 years production experience,
    2600 staff,
    100% test
    Flexible delivery time
