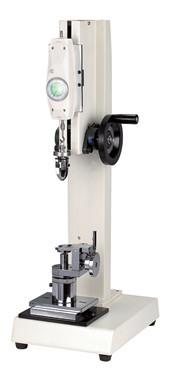

Configurable Non Destructive Testing Equipment ABQ Button Tester
Brief Introduction:
The button tester is configurable for NK, HF Push Pull Gauge and
special jig. Dedicated to measure the buttons clip force or the
collapsing force of detachment from clothing.
Detecting the fixed strength of buttons is very important standard.
Especially in infants and children's clothing design and
manufacturing is the most important. It needs strength instruments
to note the measurement of the force in the fixed decorative
button.
Applications:
The purpose of ABQ buttons tester is to define the responsibility
of the garment manufacturers to ensure the button
and.push.button.and the fixed article can be properly fixed in the
garment, preventing the buttons, etc, separate from clothing so
that make the chance of dangerous that the baby swallow. Therefore,
all garment button, and fixed decorative button.
The whole can be put into small objects measurement are required
detection by the button tester.
Functions:
1. The test method of this instrument is used to measure buttons
and clothing for vertical tension tests,
and button and push button don’t need to pull from clothing.
2. This method requires button sewing specification should be in
accordance with the standard of button maker.
3. This test method is used to establish the relevance in different
environment,as well as all kinds of different buttons and brand to
make comparison.
4. This standard may contain hazardous materials, equipment. But we
do not list all possible security problems in the using within
standard. Therefore, the standard user’s responsibility is to
create rules relevant safety and health and determine the
appropriate rules before using.
5. All the buttons are needed sewed tightly by chains stitching on
fabric.
6. According the requirements of test, when the maximum button size
is larger than or less/equals 6mm,
buttons should inherit a tension of 90N or 50N respectively.
