    Electrodynamics Vibration Test System / Vibration Shaker Table High Frequency Vertical And Horizontal

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-G826
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Certification : ISO
    • Product Details
    • Company Profile

    Electrodynamics Vibration Test System / Vibration Shaker Table High Frequency Vertical And Horizontal

    Electrodynamics Vibration Shaker Table Test Machine

    High Frequency Vertical And Horizontal


    Description:

    Electromagnetics vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.


    Characteristics:

    Ultra mute work; The machine base uses the high quality material, installs conveniently, the operation is smooth, does not need to install the The, the control circuit digitization control and the display frequency, the PID adjusts the function, causes the equipment work to be more stable, reliable, sweeps the frequency and the fixed frequency operation way, adapts to the different profession test request To solve the interference of the strong electromagnetic field to the control circuit, and to increase the working time set, so that the test product reaches the accurate test time.


    Performance Data Sheet:

    Shaker
    Sine force (peak)30kN
    Shock force (peak)60 kN
    Frequency range5~2,600 Hz
    Displacement (continuous)100 mm
    Max. Velocity1.8 m/s
    Max. Acceleration75 G
    Armature Diameter445 mm
    1st order resonant frequency2,400 Hz
    Allowable eccentric moment>500 Nxm
    Armature weight40 kg
    HE/ST screw dimensionM10 (metric)
    Axial vibration isolation frequency<3 Hz
    Max. Payload500 kg
    Magnetic flux leakage≤1 mT
    Dimensions (L×W×H, unpacked)1,330x860x1,250 mm
    Weight (unpacked)2,500 kg
    InstallationRubber mat (anchor bolts required)
    Power Amplifier
    Amplifier output30 kVA
    SNR>65 dB
    Rated output voltage120 Vrms
    Amplifier efficiency> 90%
    Dimensions (L×W×H, unpacked)800x900x2,100 mm
    Weight (unpacked)500 kg
    Blower
    Air volume0.46 m3/s
    Power7.5 kW
    Air duct diameter200 mm
    Air pressure8.8kPa
    InstallationAble to connect to ceiling (up to two 90 degree bends), max 20’ run
    Horizontal Slip Table
    Dimensions600x600 mm
    Thickness45 mm
    Frequency limit2,000 Hz
    Effective mass54 kg
    Note:
    1. High pressure oil-film bearing is used for better uniformity.
    Vibration Controller and Accelerometer
    Vibration Controller VT-9008-44 Channel Vibration Controller with Sine and Self Calibration.
    Accelerometer EA-YD-181100mV/g, Range: 50g, Working Freq.: 1-10kHz, Weight: 11gram, with 10ft low noise cable
    Other supported functions/accessories
    Environmental chambersSupported
    Mobile devicesCustomizable
    Insulation boardsCustomizable
    FixtureCustomizable
    Working environment of the system
    Temperature range0-40℃
    Humidity range0~90% , no condensation
    Power requirements380V/3ph/50Hz, 40kVA
    Compressed air pressure0.6 Mpa

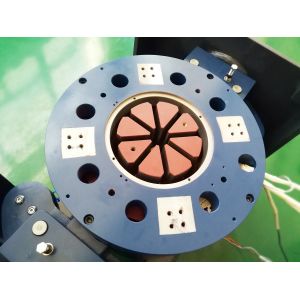

    Shaker Body with Slip Table:



    Power Amplifier and Blower:



    Dimensions for reference only:
