Galvanized Steel M8X110mm Insulation Pins, Metal Anchor Wall Plugs

Metal anchor wall plugs for fastening rigid insulation to masonry. It is as simple as drilling straight through the insulation

into the masonry and hammer the insulation fixing home. The 35mm diameter head allows the load to be spread over a larger area.

Detail data of the Metal Anchor Wall Plugs

insulation fixings have a 35mm perforated head. A dome-shaped reinforcing centre is attached to a patented precise pitch

Thor Helical shank to corkscrew into a variety of building materials including concrete, brick, perforated brick, Thermalite

block.metal anchor wall plug are suitable for fixing mineral wool insulation to masonry walls and concrete soffit boards in all

applications where fire-resistance is required. Also metal anchor wall plug suitable for fixing Kingspan or Celotex panels

where external wall insulation includes rendalath, expamet or other mesh types. fixings are available in 304 grade Stainless Steel.

Images of Metal Anchor Wall Plugs

Advantages of the Expansion Insulation Fixing Pins

Quick and simple hammerset installation saves work
No additional screws or nails.
Fire protection

Application of the Expansion Insulation Fixing Pins

Expansion Insulation Fixing Pins are suit for concrete, natural stone with dense structure, solid brick, solid sand-lime brick,

solid block made from lightweight concrete, aerated concrete, vertically perforated brick, perforated sand-lime brick etc.

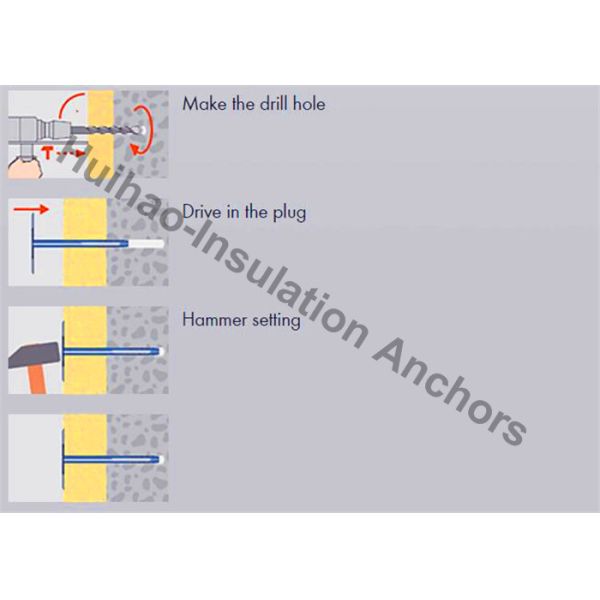

Fixed either manually using a conventional hammer or driven home using a hammer drill fitted with an SDS adapter.

The anchor has a wide integral washer-like retaining head making it quick and easy to fix, with or without pilot holes.

110mm insulation fixings for 40-70mm insulation boards
145mm insulation anchors for 75-105mm insulation slabs
170mm fireproof fixings for 105-130mm insulation panels
200mm metal fasteners for 135-160mm insulation boards

Pls Email me (david@huihaomesh.com) for samples /price /catalog .
