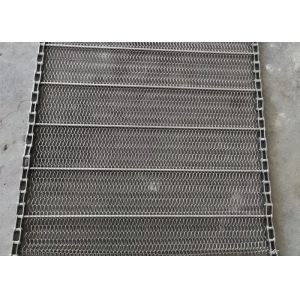

Stainless Steel Spiral Balanced Conveyor Belts, Laser Cut Machine
Flex Mesh Belt
1.Description of the Stainless steel wire mesh conveyor belt
stainless steel spiral balanced coveyor belt is also known as
trapezoidal mesh belt, flex mesh belt.
Stainless steel flex mesh belt is made by mesh belt of top hardness through a special mold pressing,
the edge can also be driven by the chain.
sprial balanced conveyor belts is used in:
- laser cutting machine,
- annealing furnace mesh belt and baking furnace mesh belt of the glass products industry.
- Food processing industry,
- dehydrated vegetables,
- frozen food single-freezer.
- Powder metallurgy,
- metal heat treatment,
- quenching,
- sintering, brazing, roasting, brightening, blackening, bearing,
- carburizing high temperature furnace,
- baffle mesh belt,
- coating and drying line conveying,
- foam nickel reduction production line,
- washing machine,
- lifting machine
Stainless steel spiral mesh belt (stainless steel mesh chain) can
adopt 201 202 nickel materials, which
can be driven by chain to reduce the force of the mesh belt, extend
the service life, change the width of the
mesh strip, and then install the chain with various labels.
According to the accessory parts of the mesh belt,
such as the baffle and the flank, it is used to transport solid
materials.
It has good permeability and easy cleaning. The material is made of
high-corrosion resistant materials such
as SUS304 316. It is used in the water line of the food industry,
safe and sanitary, and specifications. It is
generally assembled with a chain such as 08B, which is easy to
replace and repair.
Specification of stainless steel spiral balanced coveyor belt
Mesh Diameter | Other Mesh Diameter | Other Mesh NO./m | Mesh NO./m |
4 | 6 | 33(radix) | 40(circle) |
3.5 | 3.5 | 33(radix) | 40(circle) |
2.8 | 2.8 | 52(radix) | 60(circle) |
2 | 2 | 57(radix) | 71(circle) |
2.8 | 2.8 | 72(radix) | 80(circle) |
2.8 | 3 | 92(radix) | 100(circle) |
2.8 | 2.8 | 105(radix) | 118(circle) |
2.8 | 2.8 | 60(radix) | 138(circle) |
1.6 | 1.6 | 72(radix) | 80(circle) |
1.6 | 1.6 | 105(radix) | 118(circle) |
1.6 | 1.6 | 125(radix) | 138(circle) |
1.6 | 1.6 | 158(radix) | 158(circle) |
1.2 | 1.2 | 92(radix) | 100(circle) |
1.2 | 1.2 | 105(radix) | 118(circle) |
1.2 | 1.2 | 92(radix) | 138(circle) |
1.2 | 1.2 | 158(radix) | 158(circle) |
0.9 | 0.9 | 158(radix) | 158(circle) |
Common chain specifications: The commonly used chain models are as
follows: 06B, 08B, 10A, 12A, 16A, 20A, 24A,
C2040, C2042, C2050, C2052, C2060, C2062, C2080, C2082, and some
P=50mm, P=100mm Non-standard chain.
stainless steel spiral balanced coveyor belt Features:
- Stainless steel mesh chain surface is beautiful and the
possibilities of use are diversified
- Good corrosion resistance, long-lasting durability than ordinary
steel
- Good corrosion resistance
- The metal screen has high strength, so the possibility of using the
thin plate is large
- High temperature oxidation and high strength, therefore resistant
to fire
- Simple and easy to maintain because no surface treatment is
required
- Clean and high finish.
Troubleshooting of spiral balanced conveyor belt
1: If the spiral mesh belt has a running phenomenon, adjust the
tensioning shaft at one end of the driven shaft,
and adjust it slowly. Remember to adjust it quickly, causing the
edge of the mesh belt to be scratched.
2: If there is jitter in the spiral mesh belt, check whether the
conveyor and the roller in the conveying tunnel have
rust and refuse to turn, and adjust them one by one.
3: If the chain transmission type spiral conveyor belt has jump chain
and is unstable, check whether the sprocket
at both ends of the drive shaft is synchronized and whether the
tooth end is excessively worn.
images of the conveyor belt
huihao company advantages
1.The geographical position is superior and the technical force is
strong. After years of hard work, it has developed into a
professional network factory integrating research, development,
manufacturing and sales.
2.huihao factory Mainly produces metal conveyor mesh belt,
herringbone (balanced) mesh belt, B-shaped mesh belt, food
processing mesh belt, frozen mesh belt, mining conveyor belt.
3.Special specifications can be customized
4.ISO9001-2208, SGS test report and offical material certification
5.delivery in time
