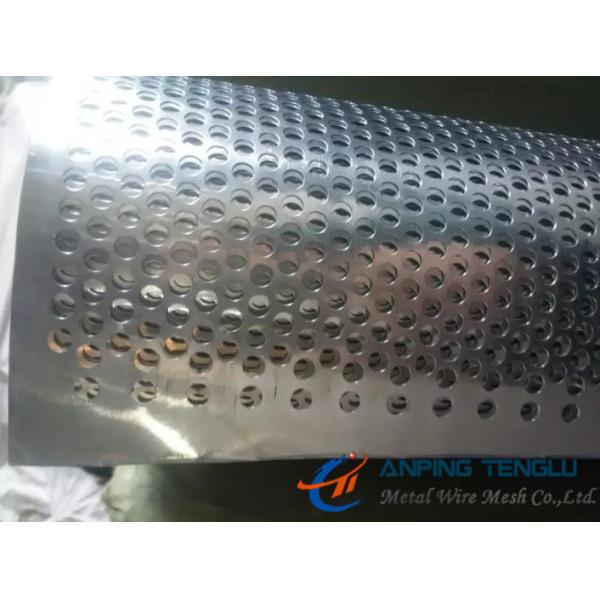

Round Hole Perforated Metal Coil Mesh also know as punched metal, the most popular and versatile metal
mesh products. They are made from the sheets or coils of metals,
which are uniformly punched, have a variety of hole sizes, shapes
and configuration. Perforated metal has various of patterns by
using the different molds.Perforated metal sheets can be thick or
thin in sheet thickness of materials, and it also has small or
large aesthetically appealing openings.
We also can shear or form the perforated sheets to any
specification or desired shape. Because of those excellent
characteristic, the perforated coil metal mesh screen can be widely
used in industrial, decoration, equipment guards, screens, ceiling,
curtain wall, ventilation, etc.
Material: Stainless Steel, aluminum, mild steel, galvanized, brass, copper
and foil.
Pattern Angle of Round Hole Perforated Metal:
Applications:
Perforated coil have a variety of applications in
architectural,commercial,industrial and decoration.Such as
suspended ceiling,curtain wall cladding,interior
decoration,security, ventilation, filters, vents, guards, shelving,
window protection,screens, diffusers,acoustics and soundproofing,
louvres and ventilation, etc.
Specifications:
| Plate material | Thickness of metal(mm ) | Hole Dia. (mm) | Pitch(mm) | Sheet Width(m) |
| Rolling plate | 0.2 | 6 | 2 | 1 |
| 0.35 | 5 | 4 | 1 |
| 0.45 | 6 | 3 | 1 |
| 0.8 | 3 | 3 | 1 |
| Flat plate | 0.5 | 1 | 1 | 1 |
| 0.55 | 1.1 | 2.2 | 1 |
| 0.55 | 1.5 | 2.8 | 1 |
| 0.8 | 1.5 | 1.5 | 1 |
| 0.8 | 2 | 3.4 | 1 |
| 1.5 | 2 | 2 | 1 |
| 1.5 | 5 | 8.0 | 1 |
| 3 | 5 | 16 | 1 |
| Stainless steel plate | 0.5 | 1 | 1 | 1 |
| 0.8 | 1.5 | 1.5 | 1 |
| 1 | 2 | 2 | 1 |
| 2 | 5 | 16 | 1 |
| Aluminum plate | 0.5 | 1 | 1 | 1 |
| 0.8 | 3 | 3 | 1 |
| 1.6 | 2 | 2 | 1 |
| 3 | 4 | 16 | 1 |
Other Specifications according to your requirements.
