    High Frequency HG20 ERW Pipe 0.5-1.5mm Thickness Mill Making Machine

    Ask Lasest Price
    Brand Name : TENGTIAN
    Model Number : HG20
    Price : $100000 to $1 million
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 150 units a year
    Certification : ISO9001/BV/CE
    Delivery Time : 3 months
    • Product Details
    • Company Profile

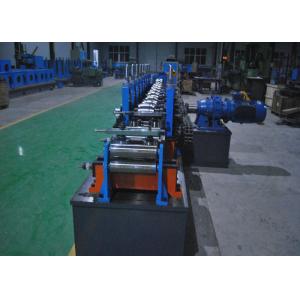

    High Frequency HG20 ERW Pipe 0.5-1.5mm Thickness Mill Making Machine

    High Frequency HG20 ERW Pipe 0.5-1.5mm Thickness Mill Making Machine


    HG20 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 10~32mm in diameter and 0.5~1.5mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.


    1. Adapt materials:
    Hot rolled or cold rolled steel strip
    Material : Low carbon steel and low alloy constructional steel
    δs≤345Mpa δb≤610Mpa
    2.Processing steel pipe size range:
    (1)Processing range:Round pipe Φ10-Φ32mm.
    Square&Rectangular pipe
    10x10—25x25


    (2)Thickness of Round pipe :0.5~1.5mm
    Thickness of Square&Rectangular pipe :0.5~1.0mm
    3.Installed capacity: 200KVA
    4.Water consumption: 20m3/h
    5.Solid-state high-frequency Welder:1KW
    6.Workshop Request:length, width and height
    30-50m X 12m X 5m


    7.Forming speed:30-1200m/min


    More Specification

    ModelDiameter(mm)Thickness(mm)Speed(m/min)Main power(kw)HF welder(KW)Area(m2)
    HG3210-320.4-1.530-10025010012x100
    HG5012-500.6-2.530-9030015012x100
    HG7612-761-330-9032020012x100
    HG8932-891-430-8035030012x100
    HG11445-1141.5-5.030-6040030012x100
    HG16560-1653-730-5060040012x100
    HG219114-2194-820-4080050015x150
    HG273114-2734-1015-30100060018x160
    HG325165-3254-1010-30120060012x100
    HG426165-4264-12.78-25140080012x100
    HG508219-5084-168-202000100012x100
