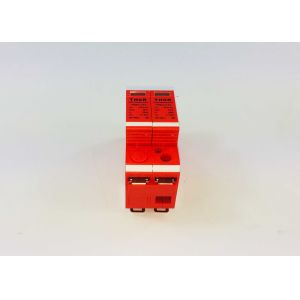

Standard RJ45 Interface Surge Suppression Devices , 220V Lightning Surge Arrester Switch

2p surge protection switch SPD TRS4-C40 lightning protection lightning arrester switch 220V

Working principle of product

Under normal working condition, the lightning protection module is in a high resistance state. When the power supply line has lightning invasion or operation transient overvoltage, the lightning protection module will immediately pass through the response speed of nanosecond level, and limit the lightning overvoltage or transient overvoltage to the voltage range allowed by the electrical equipment, thus protecting the normal operation of the electronic equipment. After that, the lightning protection module quickly returns to the high impedance state without affecting the normal power supply of the grid.

Product specification

Brief introduction

Surge protector is the lightning protection measures taken by Zhejiang toer Electric Co., Ltd. for the electrical system. It protects the sensitive lines from the damage caused by lightning induction voltage, power interference, electrostatic discharge and so on.
The housing is installed on the 35mm electric rail, and it can be applied to single-phase and three-phase power supply lines and modular design through different combinations.

Product features

1. copper fittings have good electrical conductivity

2. can withstand high lightning shock

3. high-performance chips can react quickly when problems arise.

4. cut off the line when undervoltage occurs, and reset automatically after restoration.

Notice of product

1. standard RJ45 interface can be conveniently connected to the front end of the protected equipment. The grounding path should be as short as possible, and the length should not exceed 1.5 meters.

2. connect the grounding wire of the lightning protector with the ground wire of the lightning protection system.

3. it should match the working voltage of the protected equipment. Please install according to the installation sketch.

4. ambient air temperature is no more than +40 C and no less than -5 C, and the average value of 24 hours is no more than +35 C.

Company profile

Thor has been designing new products to meet the RoHS directive since 2006. Thor’s ongoing commitment to RoHS compliance includes continuing efforts to reduce the presence of hazardous substances in the design and manufacture of a growing number of popular products.

Thor is all about protecting against the damaging effects of power transients. It is our goal and mission to connect our customer challenges with high-quality, right-priced solutions and products – completed by unrivaled customer service and technical support.

Incorporated in 2006, Zhejiang Thor Electric Co., Ltd has built everything to offer a wide range of innovative and reliable surge protection solutions and products.

Thor is following the international quality system standards, is ISO 9001 certified and our technical standards are in line with GB18802.1-2011/IEC61643-1.

All types and classes of our lightning and surge arresters 20KA~200KA(8/20μS) and 15KA~50KA(10/350μS) are tested and pass all the requirements based on their class.

Thor has been designing new products to meet the RoHS directive since 2006. Thor’s ongoing commitment to RoHS compliance includes continuing efforts to reduce the presence of hazardous substances in the design and manufacture of a growing number of popular products.

Zhejiang Thor Electric Co., Ltd is committed to meeting the requirements of the European Union’s Waste Electrical and Electronic Equipment (WEEE) directive. This directive requires producers of electrical and electronic equipment to finance the take-back for re-use or recycling of their products placed on the EU market after 2005.
