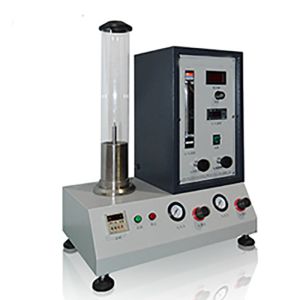

    Digital Oxygen Index Flammability Test Chamber ZY6155A Adjustable Pressure

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : ZY6155A
    Certification : It conforms to GB/T2406 "test method of plastic combustion performance - oxygen index method" and JIS7201, BS2782, ANSI/ASTM, D2863, ISO4589 and test standard.
    Supply Ability : 10 sets/month
    Delivery Time : 30 work days
    Price : USD 3000-80000/SET
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    Digital Oxygen Index Flammability Test Chamber ZY6155A Adjustable Pressure

    digital oxygen index Flammability Test Chamber GB / T2406 ZY6155A


    Scope of application:


    It is used to determine the ease of combustion when the material is in contact with flame in air. It is applicable to homogeneous solid materials, laminated materials, film and film materials.


    Meet the standard:


    It conforms to GB/T2406 "test method of plastic combustion performance - oxygen index method" and JIS7201, BS2782, ANSI/ASTM, D2863, ISO4589 and test standard.


    Main features:


    Chassis and part structure:

    Control box: using CNC machine tool for forming, the arc shape is beautiful and generous. High quality SUS304 mirror stainless steel material, beautiful, anti-rust anti-corrosion.

    Combustion tube, high temperature resistant high quality glass tube (¢100 mm inner diameter, length and 450 mm)

    Outlet inner diameter: phi 40mm

    Mixer: use glass bead filling form to mix oxygen and nitrogen evenly. (bead phi 4.5mm filling height 95mm)

    Sample fixture: self-supporting fixture, and can hold the sample vertically.


    Main parameters:


    Oxygen concentration (oxygen index) : read direct

    Oxygen concentration (oxygen index) sensor: U.S. imports.

    Three pressure gauges provide oxygen output pressure, nitrogen output pressure and mixed gas output pressure, which can adjust the pressure through the regulator.

    Measuring range: 0-80%, resolution: 0.1L/min

    Measurement accuracy: 2.5 level

    Combustion tube: quartz glass tube, inner diameter: 100mm height: 500mm

    Gas velocity at the top of the burner: 90mm / 10mm/s

    Gas velocity: 40mm + 2mm/s

    Input pressure: 0.25 ~ 0.5Mpa adjustable;

    Oxygen and nitrogen gas inlet: including the stabilizer valve, flow control valve, gas filter and mixing chamber.

    Sample clips can be used for soft and hard plastic.

    Igniter: dedicated butane hand-held electronic igniter

    Gas: industrial grade oxygen, nitrogen.

    Accuracy of timer: plus or minus 0.5s

    Power supply requirements: AC220 (plus or minus 10%) V/ 50HZ.


    Technical services:


    1. 20 years of brand commitment, patent quality, quality assurance, superior performance, excellent quality and full service;

    2. 20 years of brand communication, professional team, professional technical and technical consultant, and the cooperation of various quality inspection institutes and schools;

    3. Provide free service for the whole year, five quality control procedures, from material input to product handover control quality, ensure that the user is absolutely authentic;

    4. The brand effect absolutely guarantees the quality of the products, and we provide high quality products with high quality products and the highest cost performance to ensure the testing data, and the guarantee of the company;

    5. 18 professional technicals will solve any problem in your products. Professional after-sales team will provide you with the most beautiful service;

    6. Free teaching research, equipment maintenance and free upgrade of equipment server;
