1.8m High Sample Fire Testing Equipment ZY6508-1.8 M Fire Hydrant Box Stiffness

    Buy cheap 1.8m High Sample Fire Testing Equipment ZY6508-1.8 M Fire Hydrant Box Stiffness from wholesalers

    Buy cheap 1.8m High Sample Fire Testing Equipment ZY6508-1.8 M Fire Hydrant Box Stiffness from wholesalers
    • Buy cheap 1.8m High Sample Fire Testing Equipment ZY6508-1.8 M Fire Hydrant Box Stiffness from wholesalers

    1.8m High Sample Fire Testing Equipment ZY6508-1.8 M Fire Hydrant Box Stiffness

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : ZY6508-1.8 M
    Certification : fire hydrant box stiffness test rig with reference to the national standard GB14561-2003 "fire hydrant box" design and production of 150/40 n m. hydrant box stiffness test rig, dedicated to fire hydrant box at a certain moment under the action of deformati
    Supply Ability : 10 sets/month
    Delivery Time : 30 work days
    Price : USD 3000-80000/SET
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    1.8m High Sample Fire Testing Equipment ZY6508-1.8 M Fire Hydrant Box Stiffness

    1.8m High Sample Fire Testing Equipment ZY6508-1.8 M Fire Hydrant Box Stiffness


    Scope of application:


    Fire hydrant box stiffness test function test 800, 1000, 1200 three kinds of height specification fire hydrant box. It is fast and convenient to work with manual screw. Stiffness test for fire hose reel plug box (150N ·m moment)

    Stiffness test for bracket type bolting box (40N ·m moment)

    Stiffness test for mounted bolting box (40N ·m moment)

    Applicable to the sample size of the following hydrant box (long side mm x short edge mm x thickness mm) :

    800 x 650 * 200 fire hydrant box

    800 x 650 x 240 fire hydrant box

    800 x 650 x 320 hydrant box

    1000 x 700 * 200 hydrant box

    1000 x 700 by 240 hydrant box

    1000 x 700 x 320 hydrant box

    1200 x 750 * 200 hydrant box

    1200 x 750 * 240 hydrant box

    1200 x 750 * 320 hydrant box


    Meet the standard:

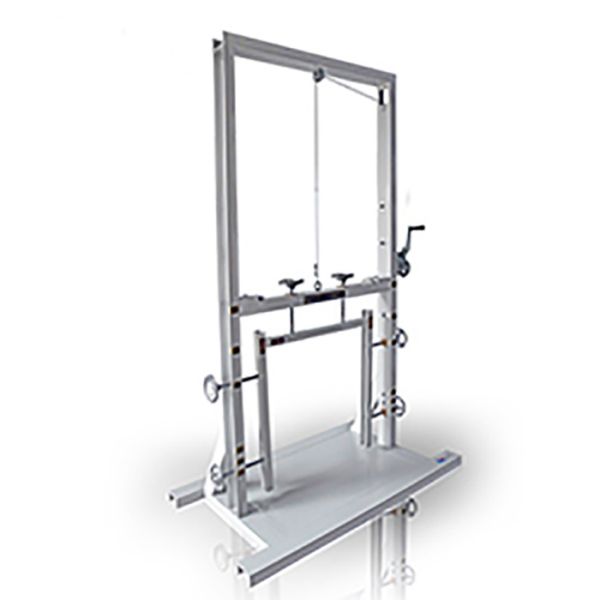

    1, fire hydrant box stiffness test rig with reference to the national standard GB14561-2003 "fire hydrant box" design and production of 150/40 n m. hydrant box stiffness test rig, dedicated to fire hydrant box at a certain moment under the action of deformation degree of sag measurement, can according to the actual need to set different standards. Can detect 800, 1000, 1200 three kinds of height specification fire hydrant box. It is fast and convenient to work with manual screw. The test bed consists of a test frame, a fixed compression device, a heavy hammer and a measuring device


    Main features:


    1. It can effectively fix the hydrant box on the test bed, so that the hydrant box will not shift in the detection process, and ensure that the test data is reliable and reliable.

    2. The detection method is simple and easy, without requiring the operator to have higher business skills.

    3, a complete set of test device has the advantages of simple structure, is not easy to malfunction, which can complete by means of suspension and remove measurement, through a simple manual calculation can be measured the torque stiffness of hydrant box.


    Main parameters:


    1. The stiffness test (150N ·m moment) for fire hose reel plug box

    2. The stiffness test (40N ·m moment) for bracket type bolting box

    3. The stiffness test (40N ·m moment) for the mounted bolting box

    4. Applicable to the sample size of the following hydrant box (long side mm x short edge mm x thickness mm) :

    800 x 650 * 200 fire hydrant box

    800 x 650 x 240 fire hydrant box

    800 x 650 x 320 hydrant box

    1000 x 700 * 200 hydrant box

    1000 x 700 by 240 hydrant box

    1000 x 700 x 320 hydrant box

    1200 x 750 * 200 hydrant box

    1200 x 750 * 240 hydrant box

    1200 x 750 * 320 hydrant box

    5. Scale deformation measurement resolution: 0.01mm

    6. Scale deformation measurement range: 0-10mm

    7. Detection space: 1300 x 1300mm

    8. The maximum size of hydrant can be measured: 750 x 320 x 1200mm

    9. Weight of weight: 500N, 100N

    10. Dimensions of test table:c

    11. Test table weight: about 250kg.


    Technical services:


    1. 20 years of brand commitment, patent quality, quality assurance, superior performance, excellent quality and full service;

    2. 20 years of brand communication, professional team, professional technical and technical consultant, and the cooperation of various quality inspection institutes and schools;

    3. Provide free service for the whole year, five quality control procedures, from material input to product handover control quality, ensure that the user is absolutely authentic;

    4. The brand effect absolutely guarantees the quality of the products, and we provide high quality products with high quality products and the highest cost performance to ensure the testing data, and the guarantee of the company;

    5. 18 professional technicals will solve any problem in your products. Professional after-sales team will provide you with the most beautiful service;

    6. Free teaching research, equipment maintenance and free upgrade of equipment server;
