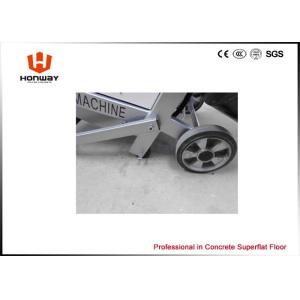

HW-G5 is a square design concrete grinding machine. It is driven by
gears and has four grinding plates. The grinding plates counter
rotates, but would not leave trace on floor. 600mm grinding width
is wider than 580mm which is common in the market.
Application:
Repair, grinding, polishing, crystallize the concrete, terrazzo,
and stone floor.
Removing concrete imperfections and contaminants
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 27.0A | 15.6A |
| Power Output | 10hp(7.5KW) | 10hp(7.5KW) |
| Inverter power | 10hp(7.5KW) | 10hp(7.5KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 600mm | 600mm |
| Disc Dianeter | 320mm*4plate | 320mm*4plate |
| N.W | 265KG | 265KG |
| Water Tank | 30L | 30L |
| Dimension | 930*600*950mm | 930*600*950mm |
Features
It is easier and more comfort to operate than counter rotating
machine.
The month of water tank is especially made, much super than old
design, to prevent the water leakage when pour water.
The working way can do forward and backward.
Closer Look
Production Flow
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for floor scarifying & grinding & polishing machine in China. We
are located in Changsha city which is well known as the capital of
construction machinery in China. This city has the abundant supply
of machinery engineers, workers, technique, workcraft, etc. Our
company develops here and builds up as a manufacturing the machines
for ‘Concrete Superflat floor’.
After Sell Service
- One year of warranty for machine.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- Honway will service you and your machines for years.
- All gear boxes are tested 48 hours before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
- We always supply the spare parts for all the old models.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our
factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond
tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
