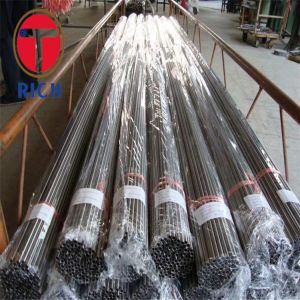

    Stainless Steel Cold rolled Seamless Tubes 304 /316GB/T 14975 , ASTM A269 / A269M

    Ask Lasest Price
    Brand Name : Torich
    Model Number : A269
    Certification : TS16949 ISO9001 ISO14001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50000tons per year
    Delivery Time : 5-8weeks days
    • Product Details
    • Company Profile

    Stainless Steel Cold rolled Seamless Tubes 304 /316GB/T 14975 , ASTM A269 / A269M

    Cold rolled Seamless Stainless Steel Tubes 304 /316

    Standard: GB/T 14975, ASTM A269 / A269M, ASTM A511 / A511 M


    Material: S30408 S30403 304 304L TP304 TP304L 316 316L TP316 TP316L 12Cr18Ni9, 06Cr19Ni10, 022Cr19Ni10, 06Cr19Ni10N, 06Cr19Ni9NbN, 022Cr19Ni10N, 06Cr23Ni13, 06Cr25Ni20, 015Cr20Ni18Mo6CuN, 06Cr17Ni12Mo2, 022Cr17Ni12Mo2

    Cold rolled Seamless Stainless Steel Tubes 304 /316

    The Tolerance of Nominal Outer Diameter and Wall Thickness Unit:mm

    Cold Drawn(Roll) Steel Tube
    DiamensionTolerance
    Ordinary Level PAHigh Level PC

    Nominal Outer Diameter

    D

    		<12.7±0.30±0.10
    12.7~<38.1±0.30±0.15
    38.1~<88.9±0.40±0.30
    88.9~<139.7±0.9%D±0.40
    139.7~<203.2±0.80
    203.2~<219.1±1.10
    219.1~<323.9±1.60
    ≥323.9±0.5%D

    Nominal Wall Thinckness

    S

    		All Wall Thickness

    +12.5%S

    -10%S

    		±10%S

    Tolerance of Minimum Wall Thickness Unit:mm

    Production MethodDiamensionTolerance
    Ordinary Level PAHigh Level PC

    Hot Roll(Extrusion,Expansion)Steel Tube

    W-H

    		Smin<15

    +27.5% Smin

    0

    +25% Smin

    0


    Smin≥15

    +35% Smin

    0

    Cold Drawn(Roll) Steel Tube

    W-C

    		All Wall Thickness

    +22% S

    0

    +20% S

    0


    Grade and Chemical Component

    No.Unified Digital CodeGradeChemical Component(Quality Fraction)/%
    CSiMnPSNiCrMoCuN
    1S3021012Cr18Ni90.151.002.000.0400.0308.00~10.0017.00~19.00--0.10
    2S3040806Cr19Ni100.081.002.000.0400.0308.00~11.0018.00~20.00---
    3S30403022Cr19Ni100.0301.002.000.0400.0308.00~12.0018.00~20.00---
    4S3045806Cr19Ni10N0.081.002.000.0400.0308.00~11.0018.00~20.00--0.10~0.16
    5S3047806Cr19Ni9NbN0.081.002.500.0400.0307.50~10.5018.00~20.00--0.15~0.30
    6S30453022Cr19Ni10N0.0301.002.000.0400.0308.00~11.0018.00~20.00--0.10~0.16
    7S3090806Cr23Ni130.081.002.000.0400.03012.00~15.0022.00~24.00---
    8S3100806Cr25Ni200.081.502.000.0400.03019.00~22.0024.00~26.00---
    9S31252015Cr20Ni18Mo6CuN0.020.801.000.0300.01017.50~18.5019.50~20.506.00~6.500.50~1.000.18~0.22
    10S3160806Cr17Ni12Mo20.081.002.000.0400.03010.00~14.0016.00~18.002.00~3.00--
    11S31603022Cr17Ni12Mo20.0301.002.000.0400.03010.00~14.0016.00~18.002.00~3.00-

    -

    Straightness:

    The length of the steel tube should not be greater than 0.15% of the total length of the steel tube and no more than 12mm.

    The bending degree of the steel pipe per meter should not be more than the following

    —— WT ≤ 15mm, 1.5mm / m

    —— WT > 15mm, 2.0mm / m

    —— Thermal expansion pipe, 3.0mm / m
