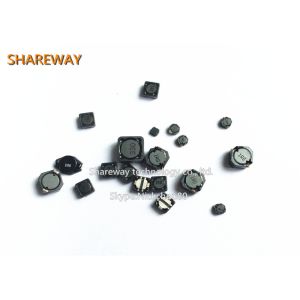

    6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_

    Ask Lasest Price
    Brand Name : Shareway
    Model Number : MSS7341-332_L_
    Certification : CE UL RoHS ISO9001:2008
    Price : Supportive
    Payment Terms : TT,Paypal
    Supply Ability : 3000K.PCS/Month
    Delivery Time : Stock or 3 weeks
    • Product Details
    • Company Profile

    6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_

    6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_


    Description:

    • 6.6 × 6.6 mm footprint; 4.1 mm high shielded inductors
    • Low DCR and excellent current handling


    Core material Ferrite
    Terminations RoHS compliant matte tin over nickel over phos
    bronze (current production) or gold over nickel over phos bronze (prior
    production). Other terminations available at additional cost.
    Weight: 0.61 – 0.67 g
    Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
    Maximum part temperature +125°C (ambient + temp rise). Derating.
    Storage temperature Component: –40°C to +125°C.
    Tape and reel packaging: –40°C to +80°C
    Resistance to soldering heat Max three 40 second reflows at
    +260°C, parts cooled to room temperature between cycles
    Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
    85% relative humidity)
    Failures in Time (FIT) / Mean Time Between Failures (MTBF)
    38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
    Packaging 300/7 reel; 1200/13″ reel; Plastic tape: 16 mm wide,
    0.35 mm thick, 12 mm pocket spacing, 4.5 mm pocket depth


    Part number

    Inductance

    (μH)

    Percent

    tolerance

    DCR

    (mOhms)

    SRF

    typ

    (MHz)

    Isat (A)Irms (A)6
    typmax

    10%

    drop

    20%

    drop

    30%

    drop

    20°C

    rise

    40°C

    rise

    MSS7341-332_L_3.330,200.0140.018852.743.283.723.955.00
    MSS7341-502_L_5.030,200.0180.023492.302.823.163.404.70
    MSS7341-622_L_6.230,200.0240.027422.182.662.983.054.30
    MSS7341-742_L_7.430,200.0270.031351.922.322.562.804.10
    MSS7341-872_L_8.730,200.0290.034331.782.122.362.803.90
    MSS7341-103ML_10200.0320.038321.641.922.102.803.80
    MSS7341-123ML_12200.0400.050271.481.761.922.453.30
    MSS7341-153ML_15200.0470.055261.361.601.782.053.00
    MSS7341-183ML_18200.0650.075251.201.461.621.852.65
    MSS7341-223ML_22200.0740.082221.021.261.421.702.35
    MSS7341-273ML_27200.0910.109191.001.141.221.502.10
    MSS7341-333ML_33200.1040.124170.911.041.161.501.95
    MSS7341-393ML_39200.1150.130150.851.011.121.501.90
    MSS7341-473ML_47200.1270.155140.740.921.001.501.85
    MSS7341-563ML_56200.1740.202110.680.800.871.251.60
    MSS7341-683ML_68200.2360.2509.60.620.730.801.001.35
    MSS7341-823ML_82200.2570.2908.50.570.660.721.001.25
    MSS7341-104ML_100200.2860.3107.20.540.640.710.901.15
    MSS7341-154ML_150200.4380.4756.00.450.530.580.861.14
    MSS7341-224ML_220200.6600.7105.00.350.410.470.570.78
    MSS7341-474ML_470201.211.453.00.240.280.320.430.57
    MSS7341-684KL_680201.851.982.50.220.270.290.420.56

    6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_


    Shape and Dimensions:
